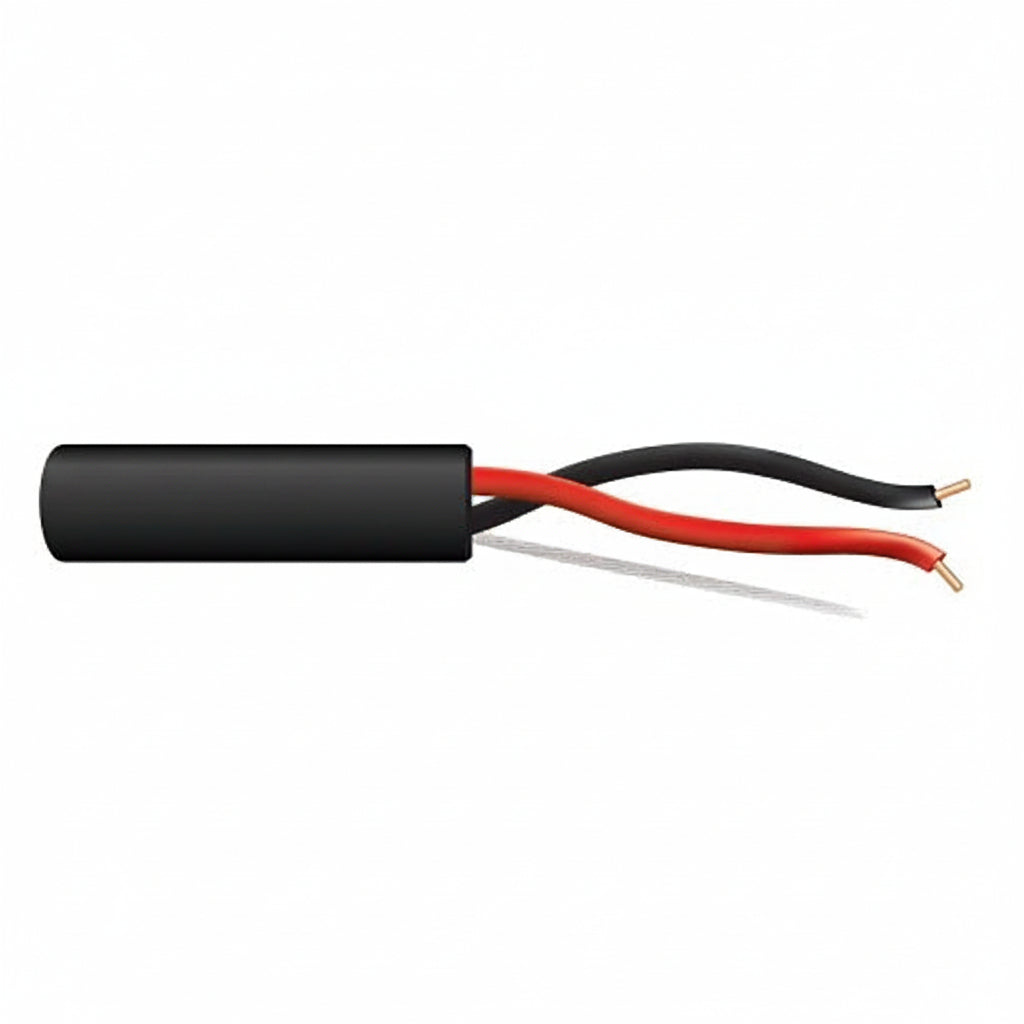

Genesis 45061008 18/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Black

The Genesis 45061008 is an 18 AWG, 2-conductor solid bare copper fire alarm cable that comes on a 1000' (304.8 m) reel in black. It carries a plenum (FPLP) rating, so it suits indoor fire alarm runs for installers and businesses. Unshielded construction, low-smoke PVC insulation and countdown length markings make it straightforward to pull and track.

Key features

• Bare copper conductors give good conductivity and keep voltage drop low.
• Low-smoke PVC insulation covers the conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings help you track how much cable you have used and how much remains.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• The cable is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 45061008

Product Type: Fire Alarm Cable

Rating: Plenum, FPLP

Length and packaging: 1000' (304.8 m) reel

Color: Black

Gauge: 18 AWG

Conductor size/count: 18/2

Number of Conductors: 2

Number of Pairs: 1

Conductor Material: Bare Copper

Solid or Stranded: Solid

Insulation Material: LS-PVC

Shielding: No

Armored: No

Indoor/Outdoor: Indoor

Voltage Rating: 300 V

Temperature Rating: -20 °C to 75 °C

Environmental Certification: RoHS

TAA Compliant: Yes

Country of Origin: US

Installation notes

Keep this cable indoors and follow local code and the fire alarm panel manufacturer's guidance for routing and support. Use the countdown markings to cut runs to length, and label each cable at both ends before terminating.
