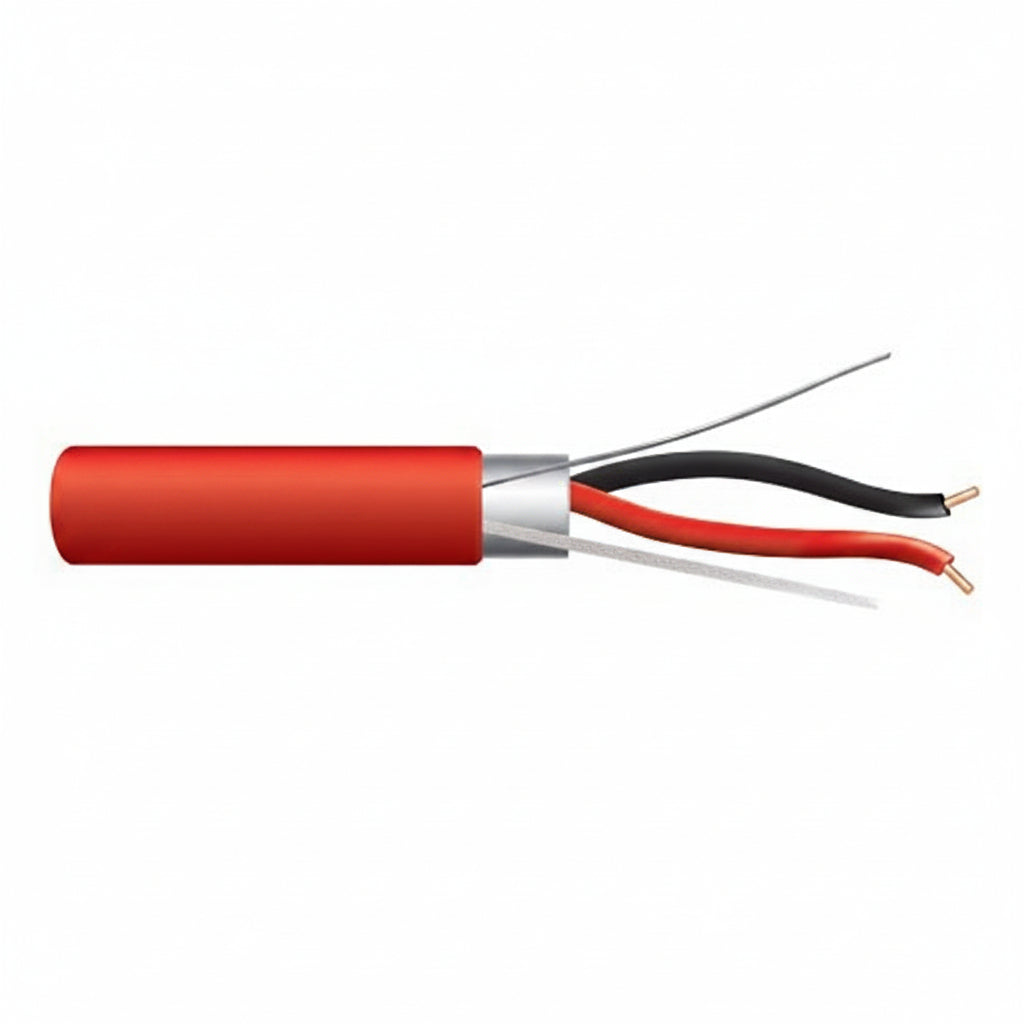

Genesis 44065504 16/2 Solid Shielded Fire Alarm Cable, Riser, FPLR, 500' (152.4 m) Pull Box, Red

The Genesis 44065504 is a 500 ft pull box of 16/2 solid shielded fire alarm cable with a riser rating, finished in red. It carries two solid bare copper 16 AWG conductors under an overall foil shield with a drain wire, and it is aimed at indoor fire alarm system wiring. Countdown length markings and a rip cord for stripping the jacket make it easier to work with on longer runs.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• A foil shield covers all conductors, and the jacket is PVC over polypropylene insulation.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings show how much cable you have used and how much is left.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• It is sunlight resistant (UV) rated and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 44065504

Product type: Fire alarm cable

Size: 16/2 (16 AWG, 2 conductors, 1 pair)

Conductor: Solid bare copper

Shielding: Yes, foil shield with drain wire

Rating: Riser, FPLR

Insulation: Polypropylene (PP)

Jacket: PVC

Length and packaging: 500' (152.4 m) pull box

Color: Red

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Armored: No

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Installation notes

Terminate the drain wire and shield according to the panel and device manufacturer's instructions so the shield stays continuous through the run. Use the countdown markings to plan each pull and avoid running short, and follow local code for riser installations and for how fire alarm cable is routed and supported.
