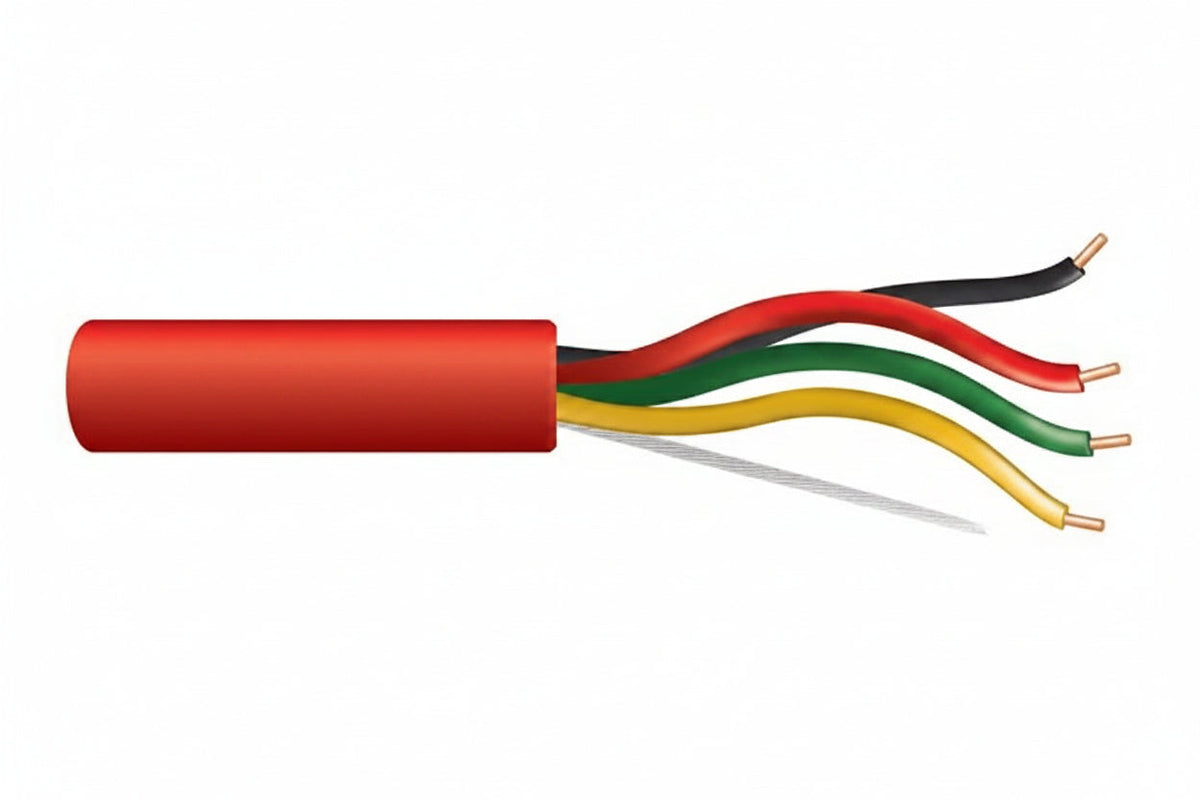

Genesis 43141004 14/4 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 1000' (304.8 m) Reel, Red

The Genesis 43141004 is a 14 AWG, 4-conductor solid, unshielded fire alarm cable in red, supplied on a 1000' (304.8 m) reel. It is rated Riser (FPLR) and intended for indoor fire alarm and control wiring, which suits installers and contractors running vertical or general building circuits. Bare copper conductors help keep voltage drop low, and the countdown length markings make it easy to see how much cable is left on the reel.

Key features

• Bare copper conductors give excellent conductivity and low voltage drop.
• Polypropylene insulation sits under a PVC jacket.
• A rip cord makes it quicker to strip and remove the jacket.
• Countdown length markings let you track usage and remaining cable.
• Sunlight resistant (UV) rated, and rated for 300 volts and -20 °C to 75 °C.
• REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 43141004

Product type: Fire Alarm Cable

Rating: Riser, FPLR

Gauge: 14 AWG (14/4)

Number of conductors: 4

Conductor material: Bare copper

Solid or stranded: Solid

Insulation: Polypropylene (PP)

Jacket: PVC

Shielding: No

Armored: No

Color: Red

Indoor/Outdoor: Indoor

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Length and packaging: 1000' (304.8 m) reel

Weight: 60.60 lb

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Installation notes

Use the rip cord to open the jacket cleanly rather than cutting into the conductor insulation, and check the countdown markings to plan runs before you cut. Because this cable is unshielded, keep it separated from higher-voltage or noisy wiring, and follow local code and the fire alarm panel manufacturer's wiring requirements.
