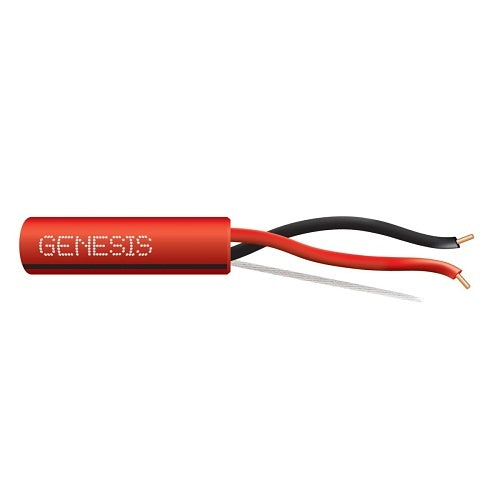

Genesis 43131004 14/2 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 1000' (304.8 m) Reel, Red

The Genesis 43131004 is a 14/2 solid, unshielded fire alarm cable in a 1000' (304.8 m) reel, rated FPLR for riser use. It carries power and signal for fire alarm circuits in indoor installations, which makes it a fit for installers pulling riser runs. Bare copper conductors keep voltage drop low, and the countdown length markings make it easy to see how much cable is left on the reel.

Key features

• Bare copper conductors give excellent conductivity and low voltage drop.
• Polypropylene insulation sits under a PVC jacket.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings help you track usage and remaining cable.
• Sunlight resistant (UV) rating, with a 300 volt rating and an operating range of -20 °C to 75 °C.
• REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 43131004

Product name: 4313-10-04 Control Cable

Product type: Fire Alarm Cable

Rating: Riser, FPLR

Length and packaging: 1000' (304.8 m) reel

Color: Red

Wire gauge: 14 AWG

Core/cladding diameter: 14/2

Number of conductors: 2

Number of pairs: 1

Conductor material: Bare copper

Solid or stranded: Solid

Insulation material: PP (polypropylene)

Shielding: No

Armored: No

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 32.20 lb

Installation notes

Use the rip cord to open the jacket cleanly before terminating, and watch the countdown markings to plan each run and avoid running short. Because this cable is unshielded and rated for indoor use, route it in the pathways appropriate for its riser rating and keep it away from sources of electrical noise.
