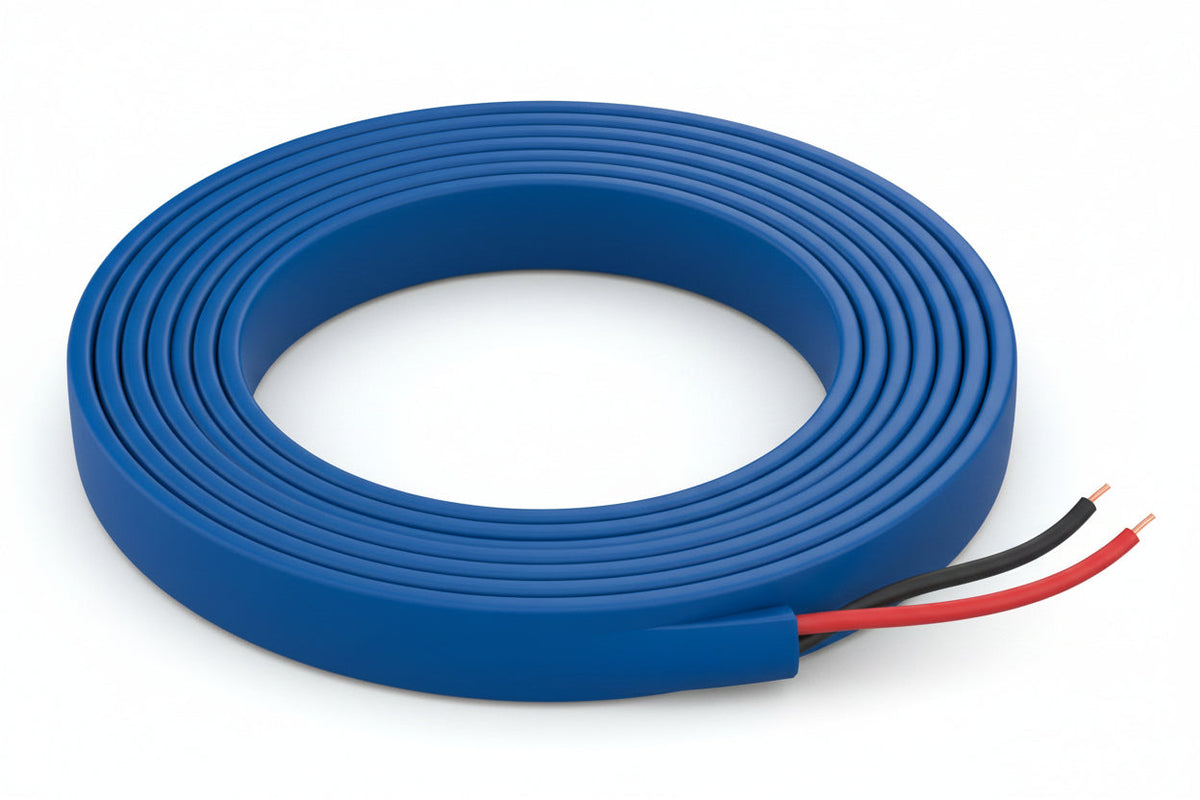

Genesis 43111006 16/2 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 1000' (304.8 m) Reel, Blue

The Genesis 43111006 is a 16/2 solid, unshielded fire alarm cable on a 1000' (304.8 m) reel, in blue. It carries a riser (FPLR) rating and uses two bare copper 16 AWG conductors, which makes it a straightforward choice for fire alarm system wiring inside a building. A rip cord for jacket stripping and countdown length markings make it easier to work with on longer runs.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Polypropylene insulation sits under a PVC jacket.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings help you track how much cable you have used and how much is left.
• The cable is rated for 300 volts and for -20 °C to 75 °C.
• It is sunlight resistant (UV) rated and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 43111006

Type: Fire alarm cable

Rating: Riser, FPLR

Size: 16/2 (16 AWG)

Conductors: 2, 1 pair

Conductor material: Bare copper

Solid or stranded: Solid

Insulation: Polypropylene (PP)

Jacket: PVC

Shielding: No

Armored: No

Color: Blue

Length and packaging: 1000' (304.8 m) reel

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 22.30 lb

Installation notes

Use the rip cord to open the jacket cleanly, and check the countdown markings to plan each run before you cut. Keep the cable within the indoor, riser-rated pathways it is intended for, and follow the fire alarm panel manufacturer's wiring requirements and local code.
