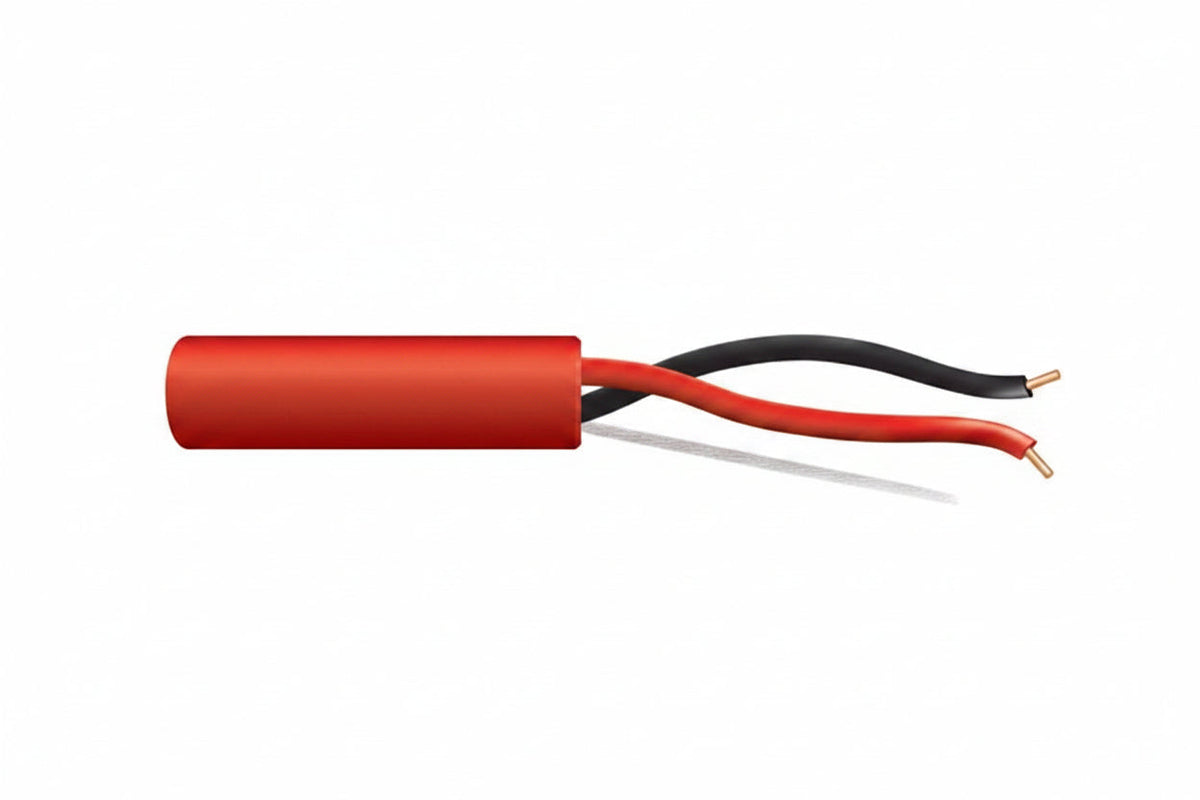

Genesis 43111004 16/2 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 1000' (304.8 m) Reel, Red

The Genesis 43111004 is a 16 AWG, 2-conductor solid bare copper fire alarm cable with a red PVC jacket, supplied on a 1000' (304.8 m) reel. It is unshielded, riser-rated (FPLR) and intended for indoor fire alarm and control wiring, which suits installers running low-voltage circuits between floors. Countdown length markings and a rip cord make it easier to measure and strip during a pull.

Key features

• Bare copper conductors give good conductivity and keep voltage drop low.
• A rip cord under the jacket allows quick, clean stripping.
• Countdown length markings show how much cable has been used and how much is left on the reel.
• Polypropylene insulation sits under a PVC jacket.
• Sunlight resistant (UV) rating and a -20 °C to 75 °C temperature rating.
• REACH/RoHS compliant and TAA compliant.

Specifications

Brand: Genesis

Model: 43111004

Product type: Fire Alarm Cable

Rating: Riser, FPLR

Length/packaging: 1000' (304.8 m) reel

Color: Red

Gauge: 16 AWG (16/2)

Number of conductors: 2

Number of pairs: 1

Conductor material: Bare copper

Solid or stranded: Solid

Insulation material: Polypropylene (PP)

Jacket: PVC

Shielding: No

Armored: No

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 22.40 lb

Installation notes

Use the length markings to plan each run and avoid leaving short cable at the panel or device end. Keep the cable within its temperature range, support it properly in vertical riser runs, and follow local code and the panel manufacturer's wiring requirements.
