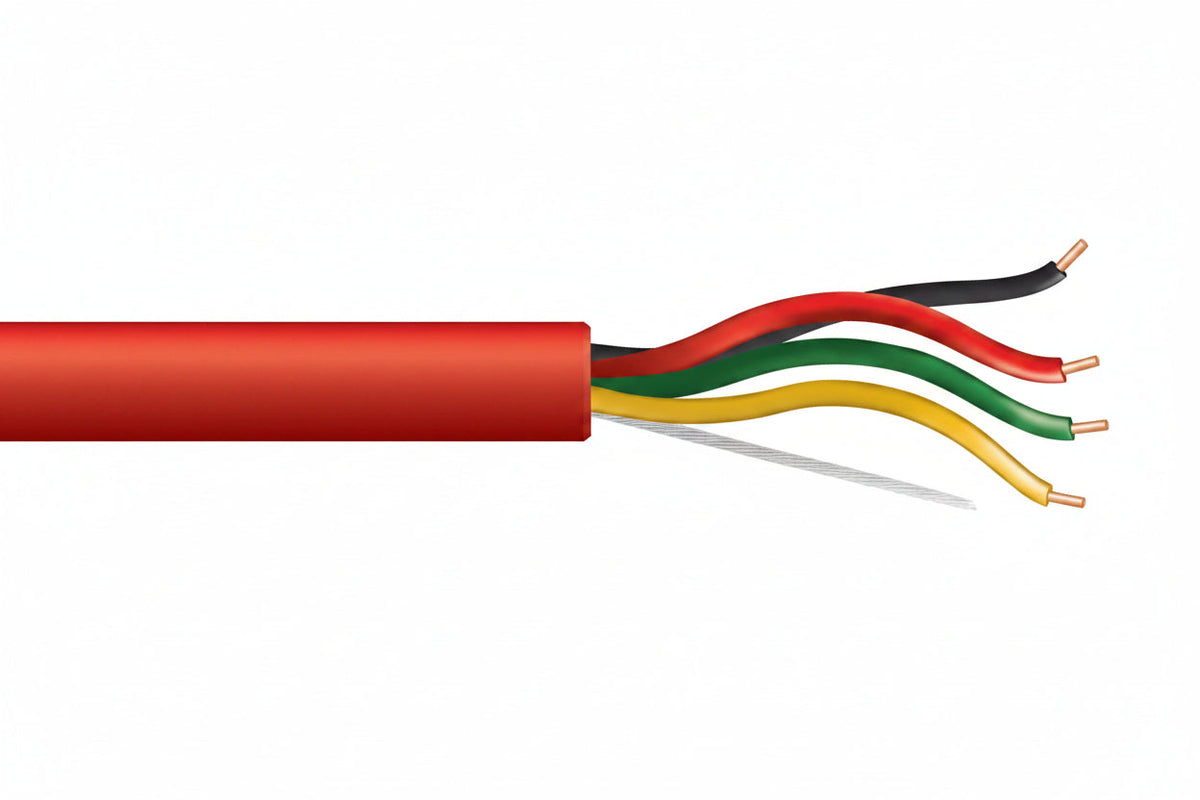

Genesis 43075504 18/4 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 500' (152.4 m) Pull Box, Red

The Genesis 43075504 is an 18 AWG, 4-conductor solid unshielded fire alarm cable with a riser (FPLR) rating, supplied in a 500' (152.4 m) pull box in red. It is a control cable for fire alarm wiring inside buildings, and suits installers who need riser-rated cable with solid bare copper conductors. Countdown length markings and a rip cord make it easier to measure and strip during a pull.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Polypropylene insulation sits under a PVC jacket.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings make it easy to track how much cable you have used and how much remains.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• It is sunlight resistant (UV rated) and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 43075504

Product type: Riser Fire Alarm Cable

Rating: Riser, FPLR

Gauge / conductors: 18/4 (18 AWG, 4 conductors)

Conductor material: Bare copper

Solid or stranded: Solid

Shielding: No (unshielded)

Armored: No

Insulation material: Polypropylene (PP)

Jacket: PVC

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Color: Red

Length / packaging: 500' (152.4 m) pull box

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 12.80 lb

Installation notes

Pull cable from the box without kinking or twisting it, and use the countdown markings to cut runs to length and keep track of what is left. Confirm that the riser rating suits the pathway and local code requirements before installing, and label each conductor pair at both ends for commissioning.
