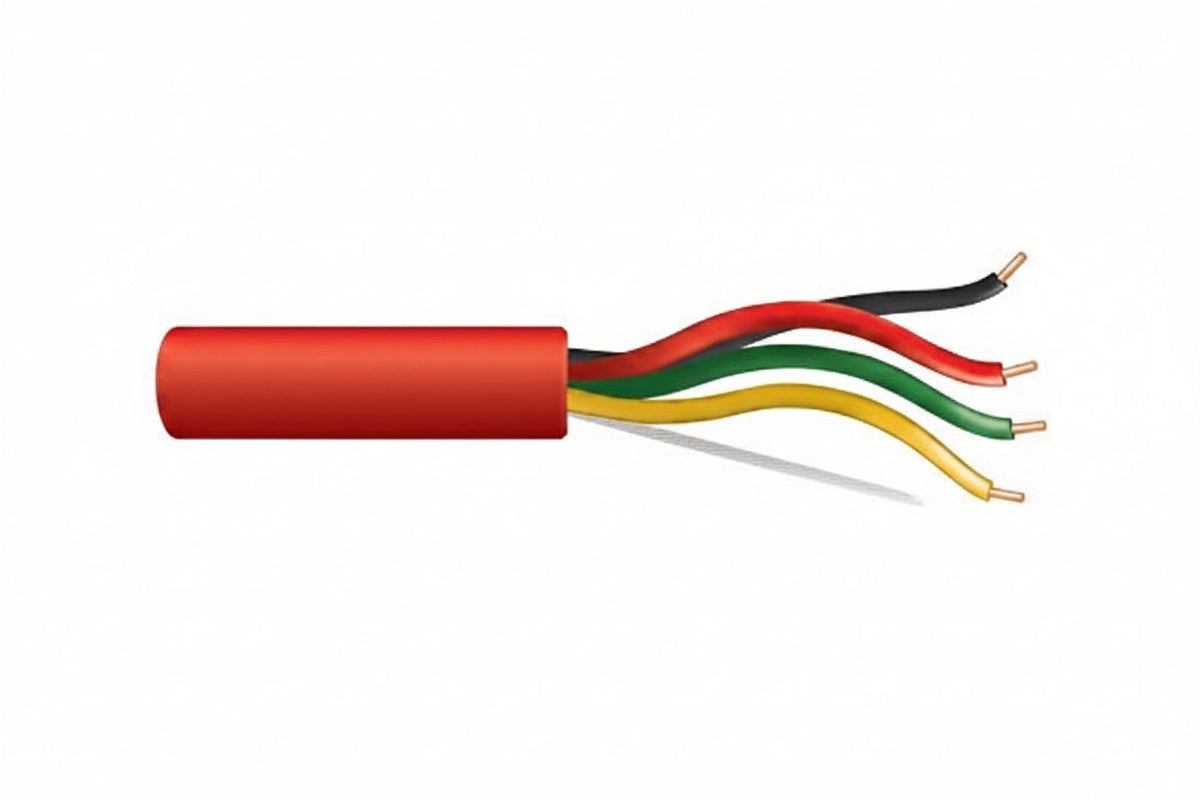

Genesis 43071104 18/4 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 1000' (304.8 m) Pull Box, Red

The Genesis 43071104 is an 18 AWG, 4-conductor solid, unshielded fire alarm cable with a red PVC jacket, rated FPLR (riser) and supplied in a 1000' (304.8 m) pull box. It suits installers running fire alarm and control wiring in indoor riser applications. Bare copper conductors keep voltage drop low, and the countdown length markings make it easy to see how much cable has been used and how much is left.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Polypropylene insulation sits under a PVC jacket.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings help you track usage and remaining cable.
• Sunlight resistant (UV) rated, and REACH/RoHS compliant.
• Rated for 300 volts and for temperatures from -20 °C to 75 °C.

Specifications

Brand: Genesis

Model: 43071104

Product type: Fire alarm cable

Rating: Riser, FPLR

Gauge: 18 AWG

Number of conductors: 4

Conductor type: Solid

Conductor material: Bare copper

Insulation material: Polypropylene (PP)

Jacket: PVC

Shielding: No

Armored: No

Color: Red

Length: 1000' (304.8 m)

Packaging: Pull box

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 26.50 lb

Installation notes

Pull cable straight from the box to avoid kinks and twists, and use the length markings to cut runs to size and keep a record of what remains. Follow local code and the authority having jurisdiction for fire alarm cable routing, support and separation from other wiring.
