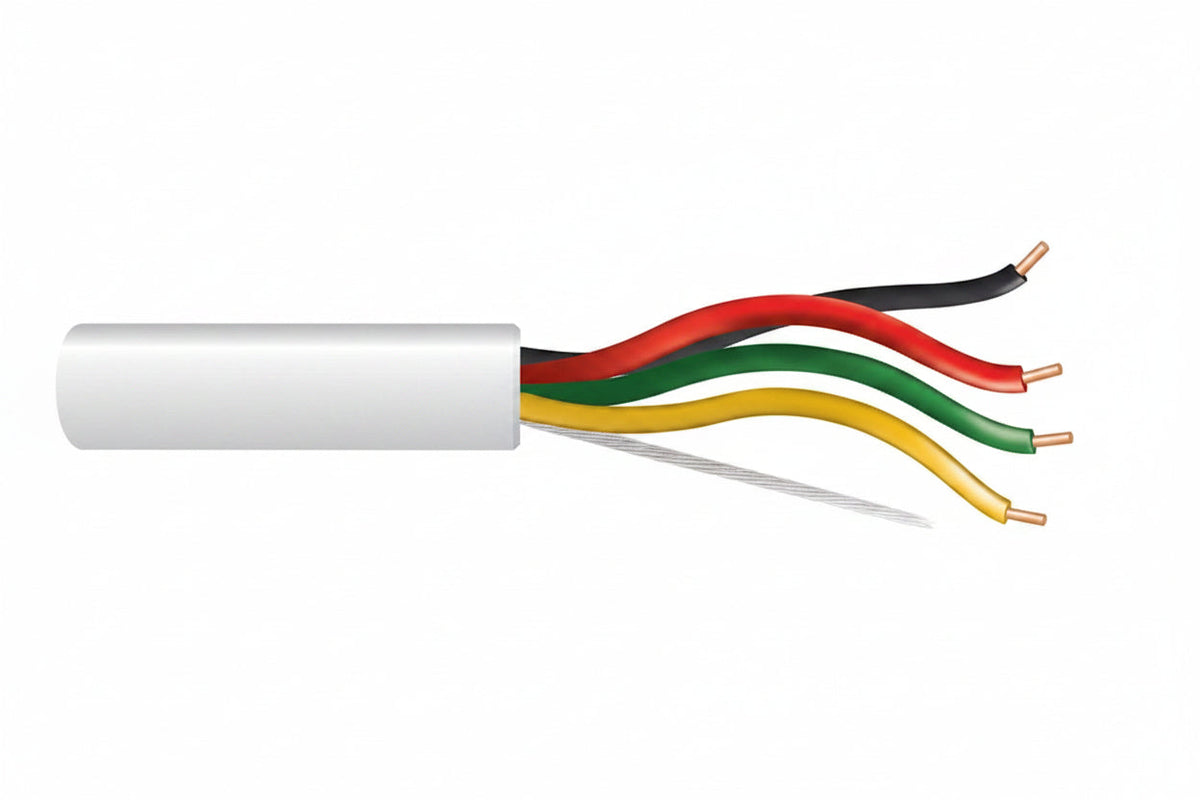

Genesis 43071101 18/4 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 1000' (304.8 m) Pull Box, White

The Genesis 43071101 is an 18 AWG, 4-conductor solid, unshielded fire alarm cable with a riser (FPLR) rating, supplied as a 1000' (304.8 m) pull box in white. It carries power and signal for fire alarm and control circuits in indoor installations, which makes it a fit for installers and contractors running riser-rated fire alarm wiring. Bare copper conductors, a rip cord for jacket removal and countdown length markings make it easier to work with and to track usage.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Polypropylene insulation sits under a PVC jacket.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings show how much cable you have used and how much remains.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• It is UV sunlight resistant rated and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 43071101

Product type: Fire Alarm Cable

Rating: Riser, FPLR

Length and packaging: 1000' (304.8 m) pull box

Color: White

Gauge: 18 AWG

Number of conductors: 4

Conductor type: Solid

Conductor material: Bare copper

Insulation: Polypropylene (PP)

Jacket: PVC

Shielding: No

Armored: No

Indoor/Outdoor: Indoor

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 25.70 lb

Installation notes

Use the rip cord to open the jacket cleanly, and keep the cable's length markings in view so you can plan runs and avoid leaving short ends. Because this cable is unshielded, route it with the local fire alarm code and good cable-separation practice in mind.
