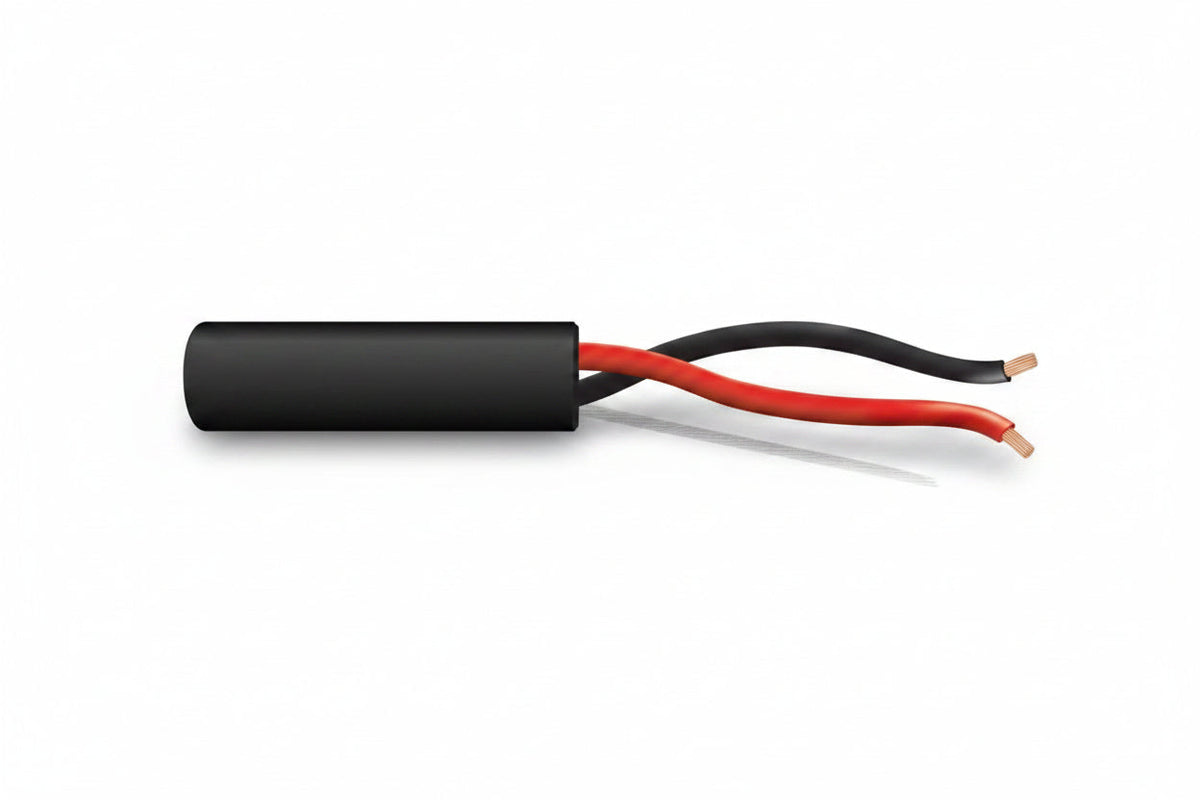

Genesis 41511008 16/2 Stranded Unshielded Fire Alarm Cable, Direct Burial, FPL, CL3, 1000' (304.8 m) Reel, Black

The Genesis 41511008 is a 16/2 stranded, unshielded fire alarm cable on a 1000' (304.8 m) reel, rated FPL and CL3 for direct burial. It suits installers running fire and security circuits outdoors, whether between buildings or underground. Bare copper conductors and a sunlight-resistant black jacket make it a practical choice for exposed outdoor runs.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• SRPVC insulation sits under a PVC jacket.
• A rip cord makes it quicker to strip and remove the jacket.
• Countdown length markings let you track how much cable you have used and how much remains.
• It is sunlight resistant (UV) rated and rated for -20 °C to 75 °C.
• It is rated for 300 volts and is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 41511008

Product name: 4151-10-08 Control Cable

Type: Direct burial fire alarm cable

Rating: FPL, CL3

Length and packaging: 1000' (304.8 m) reel

Gauge: 16 AWG (16/2)

Conductors: 2 (1 pair)

Conductor material: Bare copper

Construction: Stranded

Insulation: SR-PVC

Jacket: PVC

Shielding: No

Armored: No

Color: Black

Indoor/Outdoor: Outdoor

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 44.90 lb

Installation notes

Use the countdown markings to plan your pulls and cut lengths, and use the rip cord to open the jacket cleanly at terminations. Because the cable is unshielded and unarmored, handle it with care during burial and follow local code for trenching and routing.
