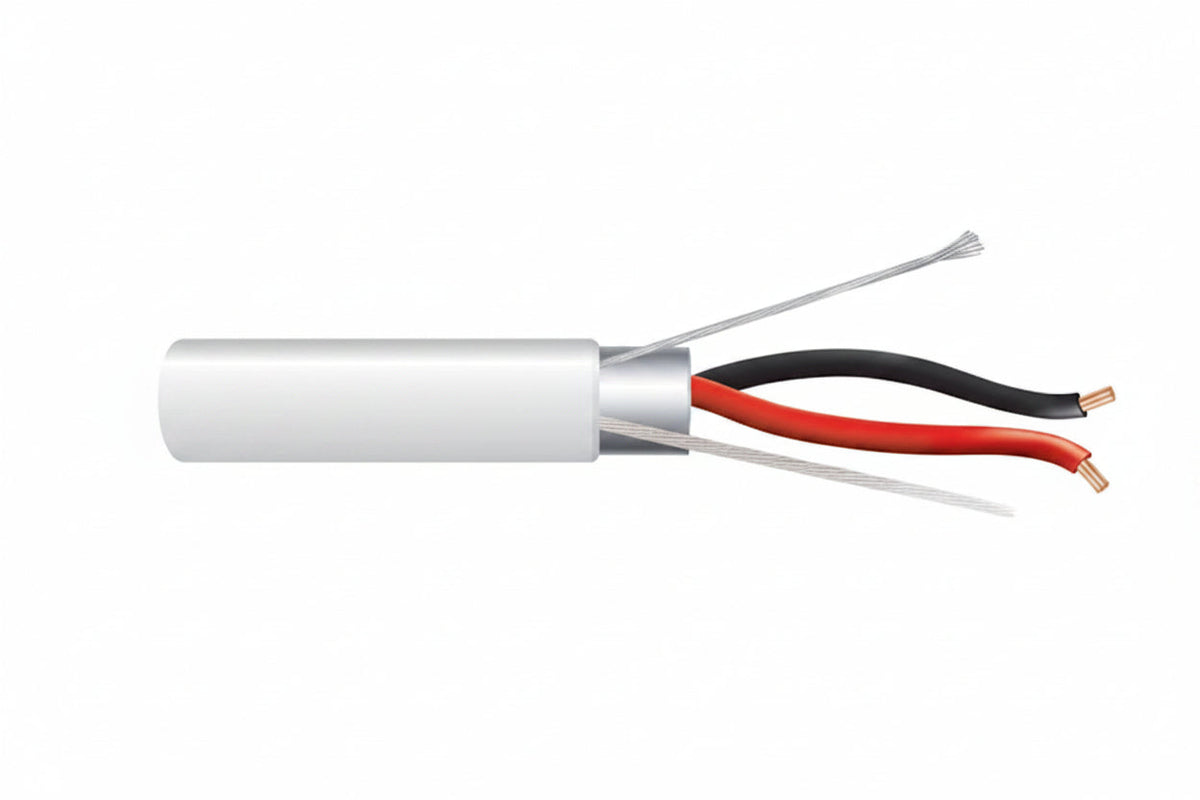

Genesis 32211012 16/2 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, Natural

The Genesis 32211012 is a 16 AWG, 2-conductor stranded shielded control cable, supplied on a 1000' (304.8 m) reel and rated plenum (CMP, FT6). It suits security and control wiring runs inside buildings where plenum-rated cable is needed, and installers will find it useful for the foil shield over the conductors and the countdown length markings. The bare copper conductors help keep voltage drop low.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A foil shield covers all conductors.
• A rip cord makes it easier to strip and remove the jacket.
• Countdown length markings let you track how much cable you have used and how much remains.
• It is rated for 300 volts and for -20 °C to 75 °C.

Specifications

Brand: Genesis

Model: 32211012

Product type: Security & Control Cables

Gauge/conductors: 16/2 (16 AWG, 2 conductors)

Number of pairs: 1

Conductor type: Stranded

Conductor material: Bare copper

Insulation: LS-PVC

Shielding: Yes

Armored: No

Fire rating: Plenum, CMP, FT6

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Color: Natural

Length/packaging: 1000' (304.8 m) reel

Indoor/Outdoor: Indoor

Environmental: RoHS; REACH/RoHS compliant

TAA compliant: Yes

Country of origin: US

Weight: 28.00 lb

Installation notes

Terminate the foil shield properly at the equipment end according to the device manufacturer's instructions, and keep the cable within its indoor, plenum-rated use. Use the rip cord to open the jacket cleanly and avoid nicking the conductors or shield.
