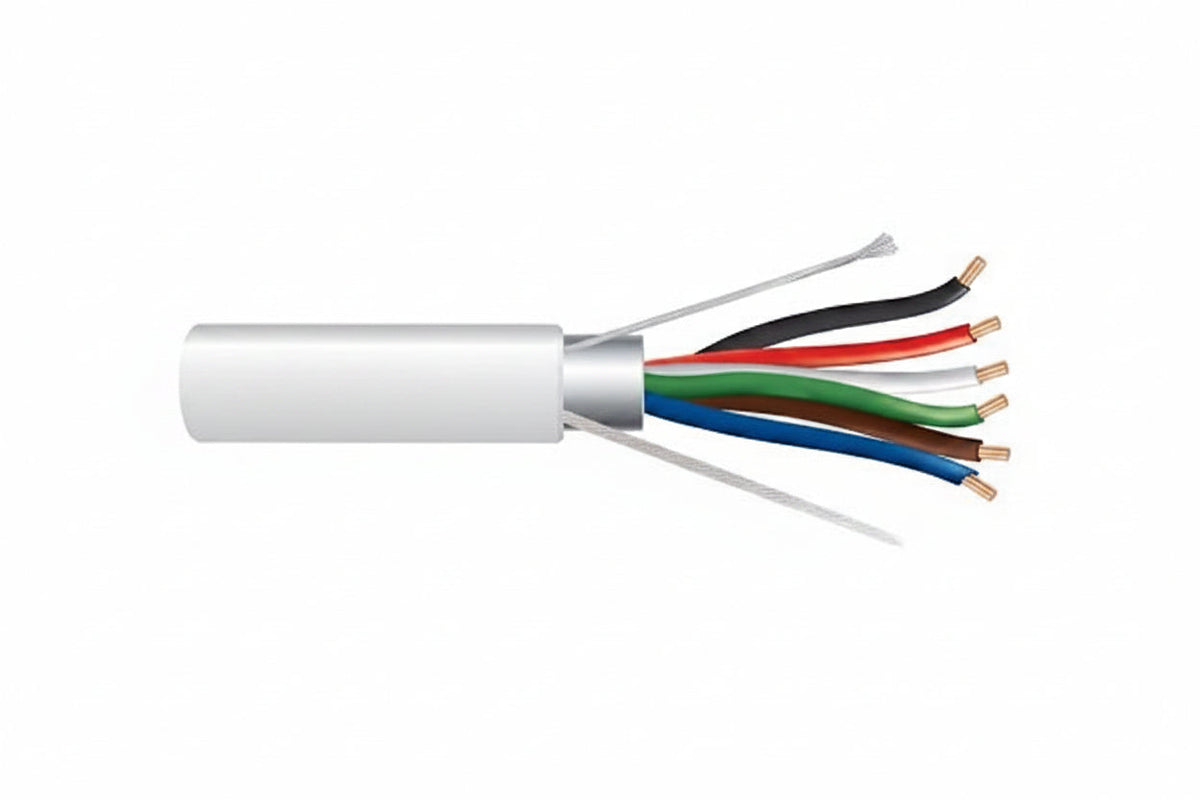

Genesis 32161012 18/6 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, Natural

The Genesis 32161012 is an 18 AWG, 6-conductor stranded shielded cable with a plenum (CMP, FT6) jacket, supplied on a 1000' (304.8 m) reel in natural. It is used for indoor security and control wiring and suits installers who need a shielded multi-conductor run. Bare copper conductors, a foil shield over all conductors and countdown length markings are its main points.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A foil shield covers all of the conductors.
• A rip cord makes it easier to strip and remove the jacket.
• Countdown length markings let you track how much cable has been used and how much is left.
• The cable is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 32161012

Product type: Security & Control Cables

Rating: Plenum, CMP, FT6

Length and packaging: 1000' (304.8 m) reel

Color: Natural

Conductors: 6

Gauge: 18 AWG

Construction: Stranded

Conductor material: Bare copper

Insulation material: LS-PVC

Shielding: Yes

Armored: No

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 44.60 lb

Installation notes

This is an indoor cable, so keep the run inside the building and out of exposed or outdoor locations. Terminate the foil shield according to the system manufacturer's guidance, and use the rip cord and the countdown markings to strip the jacket cleanly and plan your cut lengths.
