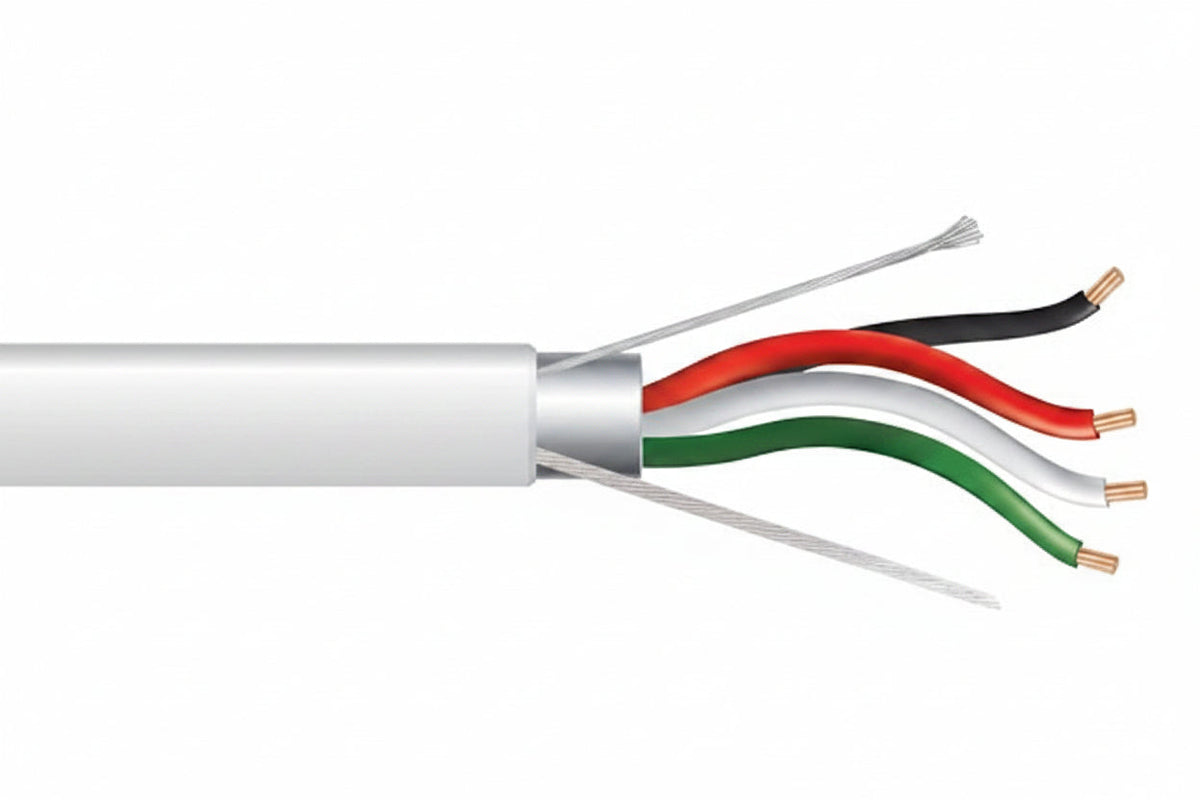

Genesis 32155512 18/4 Stranded Shielded Cable, Plenum, CMP, FT6, 500' (152.4 m) Pull Box, Natural

The Genesis 32155512 is an 18 AWG, 4-conductor stranded shielded cable in a 500' (152.4 m) pull box, rated CMP/FT6 plenum. It is a security and control cable for indoor runs, suiting installers who need a shielded multi-conductor cable in plenum spaces. Bare copper conductors, a foil shield over all conductors and countdown length markings are what set it apart.

Key features

• Bare copper conductors give excellent conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A foil shield covers all conductors.
• A rip cord makes it easier to strip and remove the jacket.
• Countdown length markings let you track how much cable has been used and how much remains.
• It is rated for 300 volts and for -20 °C to 75 °C, and is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 32155512

Product type: Security & Control Cables

Rating: Plenum, CMP, FT6

Length and packaging: 500' (152.4 m) pull box

Gauge: 18 AWG

Number of conductors: 4

Construction: Stranded

Conductor material: Bare copper

Insulation material: LS-PVC

Shielding: Yes

Armored: No

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Color: Natural

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 15.90 lb

Installation notes

Pull the cable from the box without kinks and avoid sharp bends so the shield and conductors stay intact. Terminate the foil shield according to the system's grounding requirements, and use the rip cord to open the jacket cleanly before stripping.
