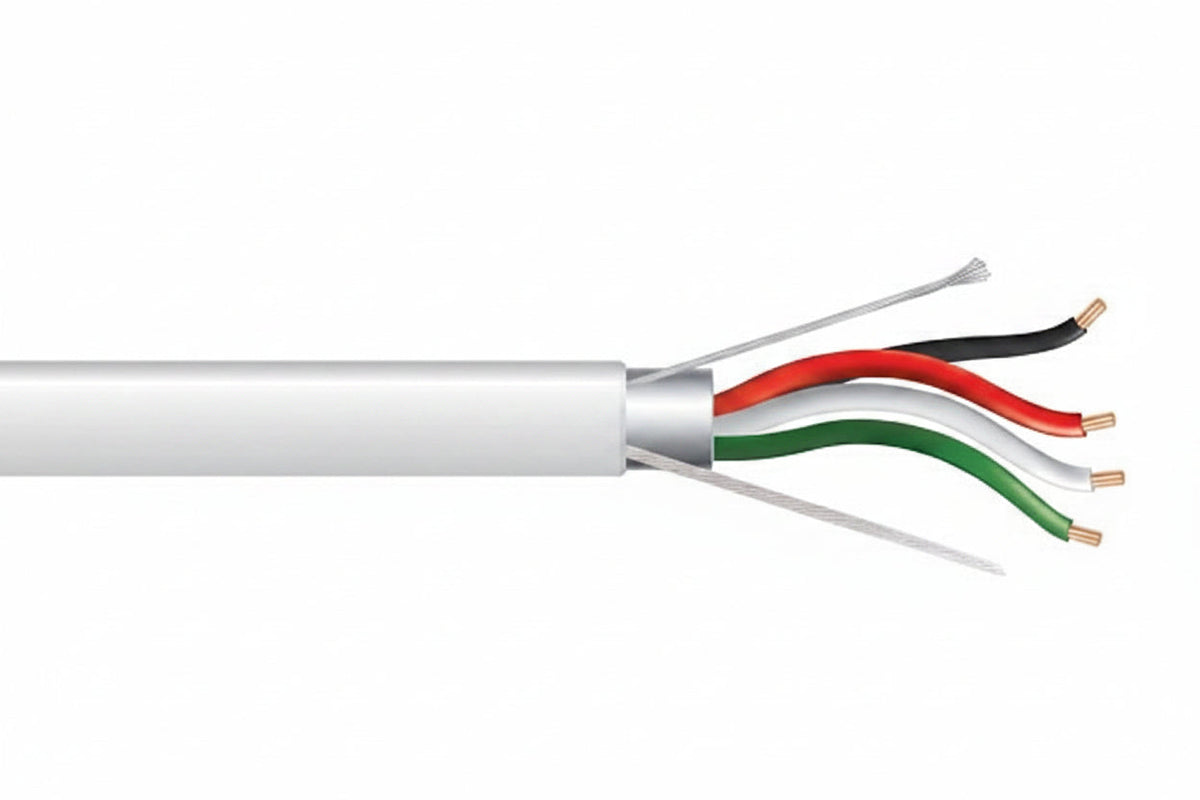

Genesis 32152112 18/4 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel-in-a-Box, Natural

The Genesis 32152112 is an 18 AWG, 4-conductor stranded shielded cable in a plenum-rated (CMP, FT6) jacket, supplied as a 1000' (304.8 m) reel-in-a-box in natural. It suits installers running control and security wiring in indoor spaces. Bare copper conductors and a foil shield over all conductors keep voltage drop low and help protect the signal, and countdown length markings make it easy to see how much cable is left.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A foil shield covers all conductors.
• A rip cord makes stripping and removing the jacket quicker.
• Countdown length markings let you track usage and remaining cable.
• It is rated for 300 volts and for -20 °C to 75 °C, and is REACH/RoHS compliant.

Specifications

Model: 32152112

Brand: Genesis

Gauge: 18 AWG

Number of conductors: 4

Construction: Stranded

Conductor material: Bare copper

Insulation: LS-PVC

Shielding: Yes

Armored: No

Rating: Plenum, CMP, FT6

Length and packaging: 1000' (304.8 m) reel-in-a-box

Color: Natural

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Installation notes

Pull the cable from the reel-in-a-box without kinking it, and avoid tight bends that could damage the foil shield. Terminate the shield according to the connected equipment's grounding guidance, and keep this indoor-only cable away from outdoor runs.
