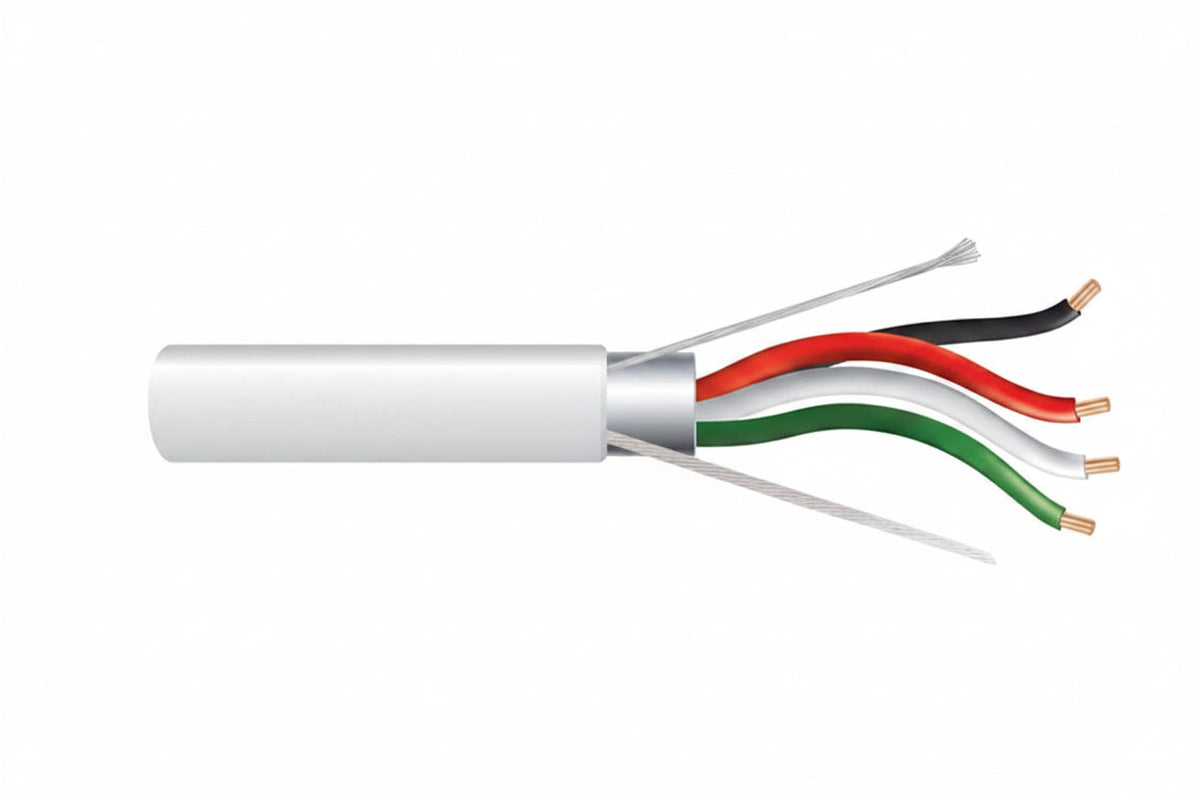

Genesis 32151112 18/4 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Natural

The Genesis 32151112 is an 18 AWG, 4-conductor stranded shielded cable with a plenum (CMP, FT6) jacket, supplied in a 1000' (304.8 m) pull box in natural. It suits security and control wiring runs in indoor spaces where plenum-rated cable is needed. Bare copper conductors, a foil shield over all conductors and countdown length markings make it practical for installers pulling long runs.

Key features

• Bare copper conductors offer good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A foil shield covers all conductors.
• A rip cord makes jacket stripping and removal more efficient.
• Countdown length markings let you track how much cable you have used and how much remains.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.

Specifications

Brand: Genesis

Model: 32151112

Product Type: Security & Control Cables

Construction: 18/4, stranded

American Wire Gauge: 18AWG

Number of Conductors: 4

Conductor Material: Bare Copper

Insulation Material: LS-PVC

Shielding: Yes

Armored: No

Rating: Plenum, CMP, FT6

Voltage Rating: 300 V

Temperature Rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Color: Clear

Length and Packaging: 1000' (304.8 m) pull box

Environmental Certification: RoHS

Compliance: REACH/RoHS

TAA Compliant: Yes

Country of Origin: US

Weight: 31.80 lb

Installation notes

Pull the cable straight from the box to avoid kinks and twists, and keep pulling tension within the manufacturer's limits. Ground the foil shield at one end only, following the connected equipment's wiring instructions, and use the length markings to plan cuts and spare slack at each termination.
