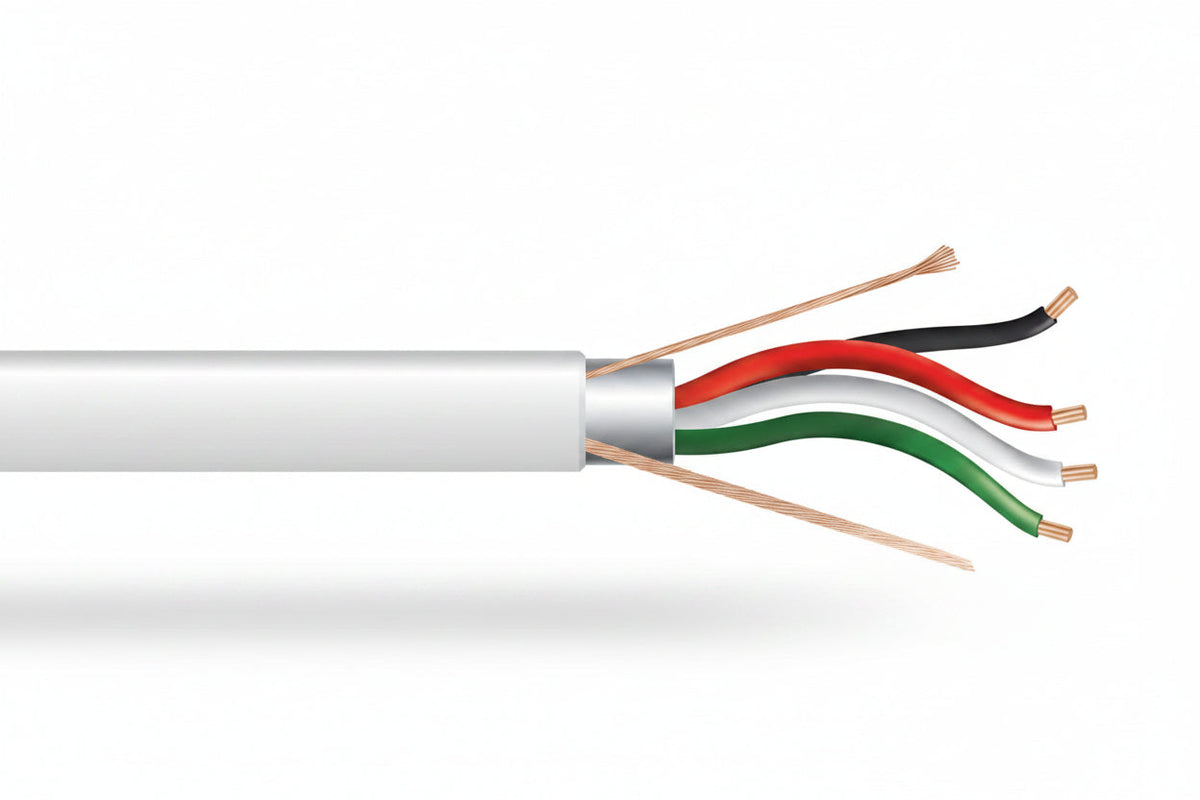

Genesis 32151012 18/4 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, Natural

The Genesis 32151012 is an 18 AWG, 4-conductor stranded shielded cable on a 1000' (304.8 m) reel, rated plenum (CMP, FT6) for indoor runs. It suits installers pulling security, control and low-voltage circuits where a foil-shielded, low-smoke jacket is needed. Bare copper conductors, a rip cord and countdown length markings make it easier to pull, strip and track on the job.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A foil shield covers all of the conductors.
• A rip cord helps you strip and remove the jacket efficiently.
• Countdown length markings show how much cable you have used and how much remains.
• It is rated for 300 volts and for -20 °C to 75 °C, and is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 32151012

Product type: Security & Control Cables

Rating: Plenum, CMP, FT6

Length: 1000' (304.8 m) reel

Color: Natural

American wire gauge: 18 AWG

Number of conductors: 4

Construction: Stranded

Conductor material: Bare copper

Insulation material: LS-PVC

Shielding: Yes

Armored: No

Indoor/Outdoor: Indoor

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Installation notes

This cable is indoor only, so keep it inside the building and follow local code for plenum spaces. Connect the foil shield according to the equipment manufacturer's grounding instructions, and use the length markings to plan each run before cutting.
