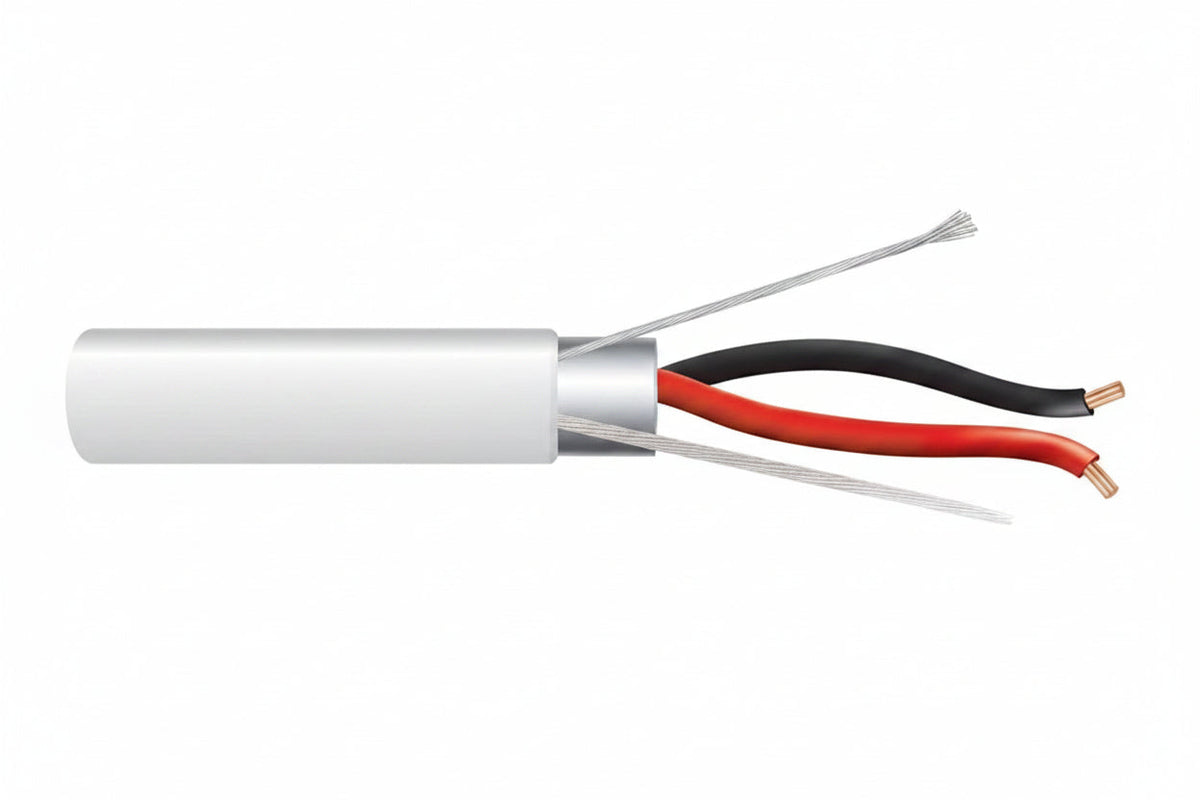

Genesis 32145512 18/2 Stranded Shielded Cable, Plenum, CMP, FT6, 500' (152.4 m) Pull Box, Natural

The Genesis 32145512 is an 18 AWG, 2-conductor stranded shielded cable in a 500' (152.4 m) pull box, with a natural plenum (CMP, FT6) jacket. It suits installers running indoor security and control wiring where a plenum-rated, shielded cable is needed. Bare copper conductors, a foil shield and countdown length markings make it easy to work with and track on a long run.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A foil shield covers all conductors.
• A rip cord makes stripping and removing the jacket more efficient.
• Countdown length markings help you track how much cable you have used and how much is left.
• It is rated for 300 volts and for -20 °C to 75 °C.

Specifications

Brand: Genesis

Model: 32145512

Product type: Security & Control Cables

Gauge: 18 AWG (18/2)

Number of conductors: 2

Number of pairs: 1

Construction: Stranded

Conductor material: Bare copper

Insulation material: LS-PVC

Shielding: Yes

Armored: No

Jacket rating: Plenum, CMP, FT6

Length and packaging: 500' (152.4 m) pull box

Color: Natural

Indoor/Outdoor: Indoor

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

Compliance: REACH/RoHS

TAA compliant: Yes

Country of origin: US

Weight: 9.60 lb

Installation notes

Terminate the foil shield according to the system's grounding practice, and keep the cable away from sources of electrical noise where possible. Use the rip cord to open the jacket cleanly, and check the countdown markings before cutting so you pull enough length for each run.
