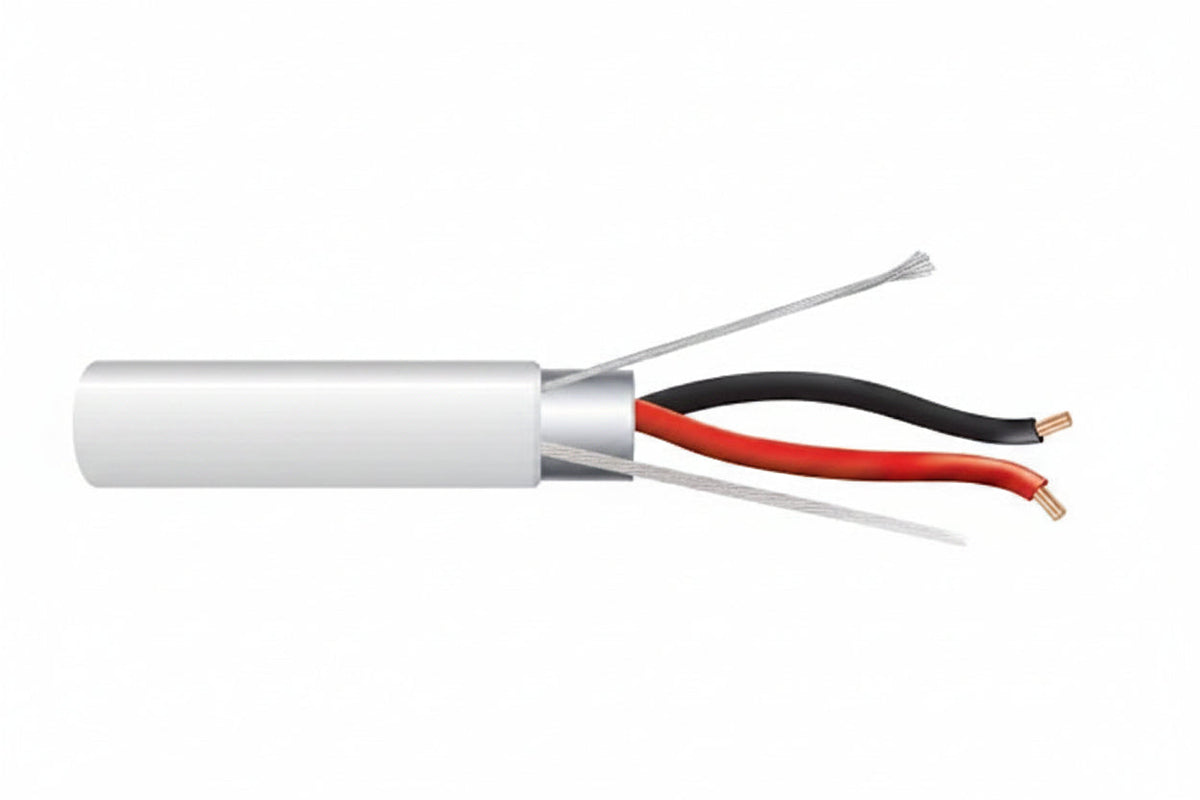

Genesis 32141112 18/2 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Natural

The Genesis 32141112 is an 18 AWG, 2-conductor stranded shielded cable that comes in a 1000' (304.8 m) pull box. It is plenum-rated (CMP, FT6) and aimed at installers running indoor control and security wiring. It stands out for its bare copper conductors, foil shield over all conductors, and countdown length markings.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A foil shield covers all conductors.
• A rip cord makes jacket stripping and removal quicker.
• Countdown length markings help you track how much cable you have used and how much remains.
• It is rated for 300 volts and for -20 °C to 75 °C.

Specifications

Brand: Genesis

Model: 32141112

Product type: Security & Control Cables

Gauge: 18 AWG (18/2)

Conductors: 2

Pairs: 1

Conductor material: Bare copper

Construction: Stranded

Shielding: Yes

Insulation: LS-PVC

Rating: Plenum, CMP, FT6

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Armored: No

Indoor/Outdoor: Indoor

Color: Natural

Length and packaging: 1000' (304.8 m) pull box

Weight: 19.10 lb

Country of origin: US

TAA compliant: Yes

Environmental certification: RoHS; REACH/RoHS compliant

Installation notes

Keep the cable within its bend and pulling limits when routing it through plenum spaces, and pull it from the box without kinking or twisting. Terminate the foil shield according to your system's grounding requirements, and use the countdown markings to cut runs to length with minimal waste.
