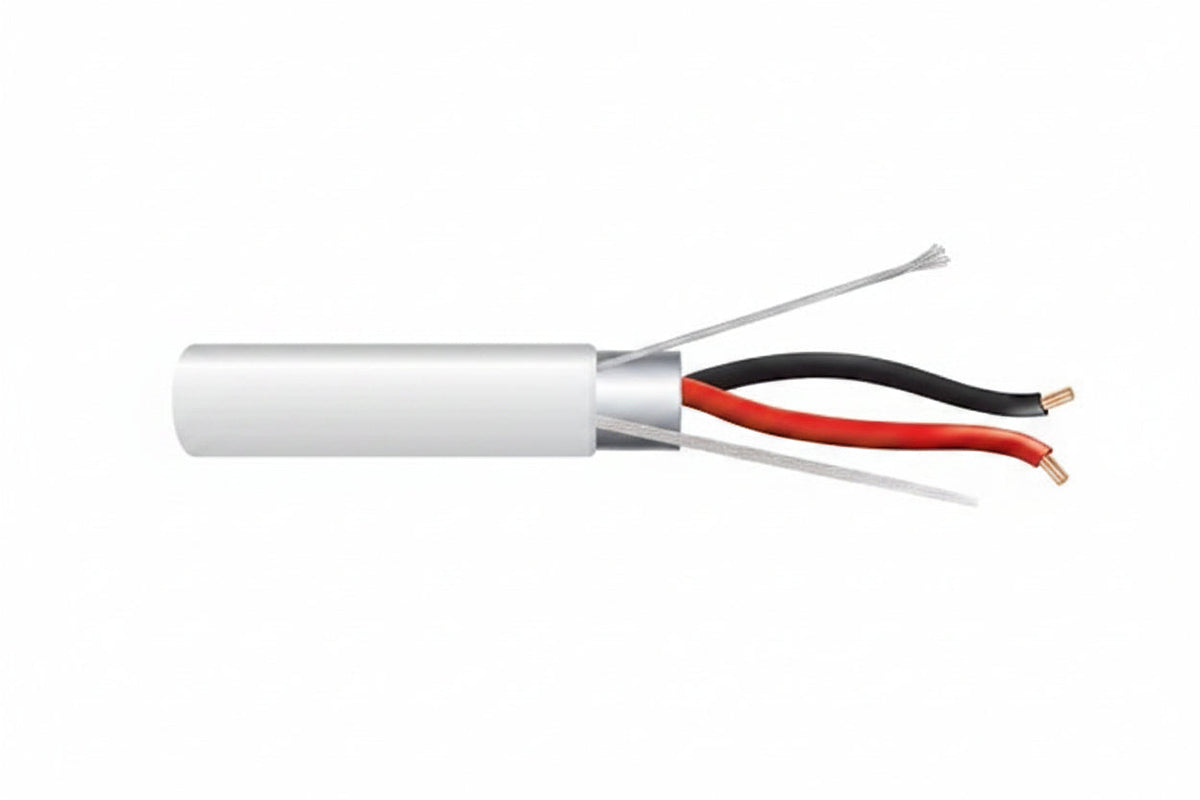

Genesis 32025512 22/2 Stranded Shielded Cable, Plenum, CMP, FT6, 500' (152.4 m) Pull Box, Natural

The Genesis 32025512 is a 22 AWG, 2-conductor stranded shielded cable with a plenum (CMP, FT6) jacket, supplied in a 500' (152.4 m) pull box. It suits installers running low-voltage security and control wiring indoors, including air-handling spaces that call for plenum-rated cable. The bare copper conductors, foil shield and countdown length markings make it practical for clean, trackable runs.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A foil shield covers all conductors.
• A rip cord makes it easier to strip and remove the jacket.
• Countdown length markings let you see how much cable you have used and how much remains.
• It is rated for 300 volts and for -20 °C to 75 °C, and is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 32025512

Product type: Security & Control Cables

Rating: Plenum, CMP, FT6

Length and packaging: 500' (152.4 m) pull box

Gauge: 22 AWG

Core/Cladding Diameter: 22/2

Number of conductors: 2

Number of pairs: 1

Construction: Stranded

Conductor material: Bare copper

Insulation material: LS-PVC

Shielding: Yes

Armored: No

Color: Natural

Indoor/Outdoor: Indoor

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 11.10 lb

Installation notes

Terminate the foil shield and drain according to the connected equipment's grounding guidance, and keep shield continuity through the run. Pull the cable gently from the pull box to avoid kinks, and use the countdown markings to plan cuts and confirm remaining length.
