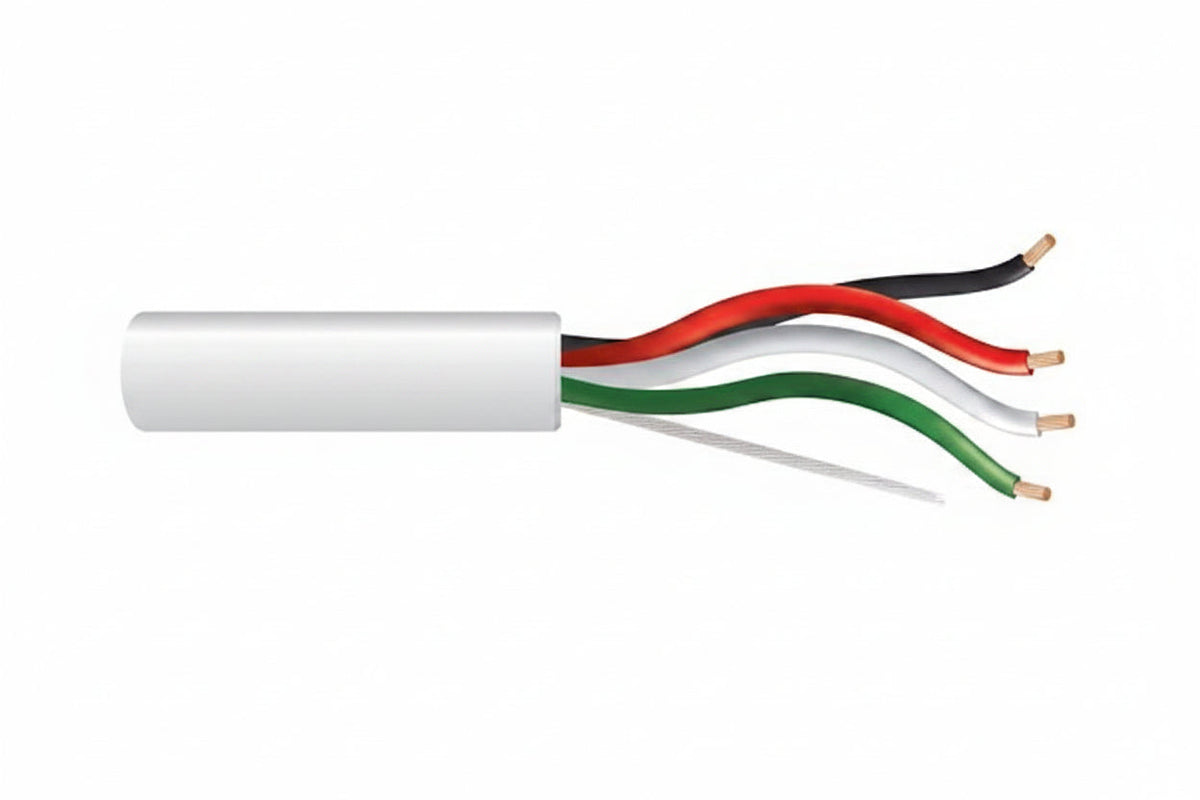

Genesis 31221012 16/4 Stranded Unshielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, Natural

The Genesis 31221012 is a 16 AWG, 4-conductor stranded, unshielded control cable in a plenum-rated (CMP, FT6) jacket, supplied on a 1000' (304.8 m) reel in natural. It suits installers running low-voltage security and control wiring indoors, where plenum-rated cable is required. Bare copper conductors help keep voltage drop low, and countdown length markings make it easy to see how much cable is left on the reel.

Key features

• Bare copper conductors provide good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings help you track usage and remaining cable.
• Rated for 300 volts and for temperatures from -20 °C to 75 °C.
• REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 31221012

Product type: Security & Control Cables

Gauge: 16 AWG

Size: 16/4

Number of conductors: 4

Construction: Stranded

Conductor material: Bare copper

Insulation material: LS-PVC

Shielding: No

Armored: No

Rating: Plenum, CMP, FT6

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Length and packaging: 1000' (304.8 m) reel

Color: Natural

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Installation notes

This is an indoor cable, so keep it out of outdoor and wet runs. Use the rip cord to open the jacket cleanly, and use the countdown markings to measure each run before you cut.
