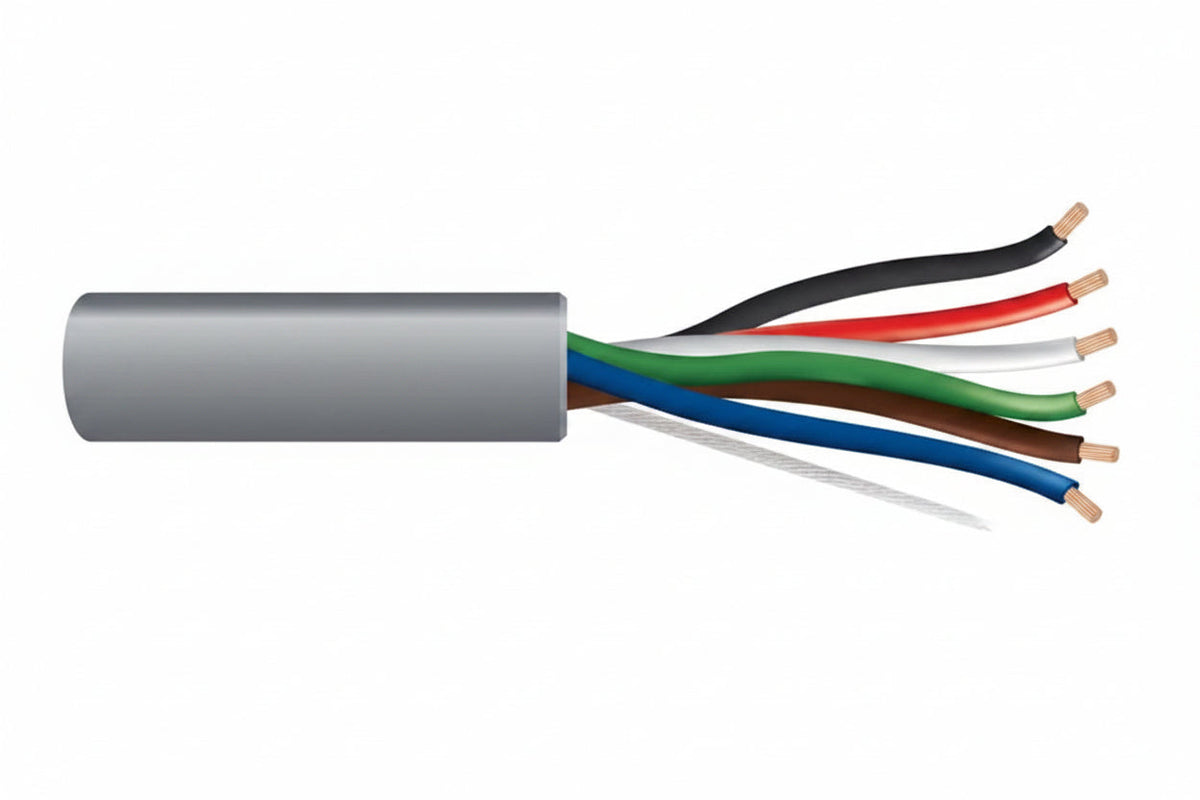

Genesis 21165509 18/6 Stranded Unshielded Cable, Riser, CMR, FT4, 500' (152.4 m) Pull Box, Gray

The Genesis 21165509 is an 18/6 stranded, unshielded riser (CMR, FT4) cable that comes on a 500' (152.4 m) pull box in a gray jacket. It is a six-conductor security and control cable for indoor runs, suited to installers pulling power or signal wiring to alarm, access and similar low-voltage devices. Bare copper conductors, a rip cord and countdown length markings make it easier to pull, strip and track.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings show how much cable you have used and how much is left.
• Polypropylene insulation sits under a PVC jacket.
• It is rated for 300 volts and for -20 °C to 75 °C.
• The jacket is sunlight resistant (UV) rated, and the cable is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 21165509

Product Type: Security & Control Cables

Cable Rating: Riser, CMR, FT4

Length / Packaging: 500' (152.4 m) Pull Box

Color: Gray

American Wire Gauge: 18AWG

Core/Cladding Diameter: 18/6

Number of Conductors: 6

Conductor Count: 1

Conductor Material: Bare Copper

Solid or Stranded: Stranded

Insulation Material: PP

Shielding: No

Armored: No

Indoor/Outdoor: Indoor

Environmental Certification: RoHS

TAA Compliant: Yes

Country of Origin: US

Installation notes

Pull the cable from the box without kinks or sharp bends, and keep it clear of high-voltage power wiring. Check your local code and the cable's riser rating before running it between floors, and label both ends of each run.
