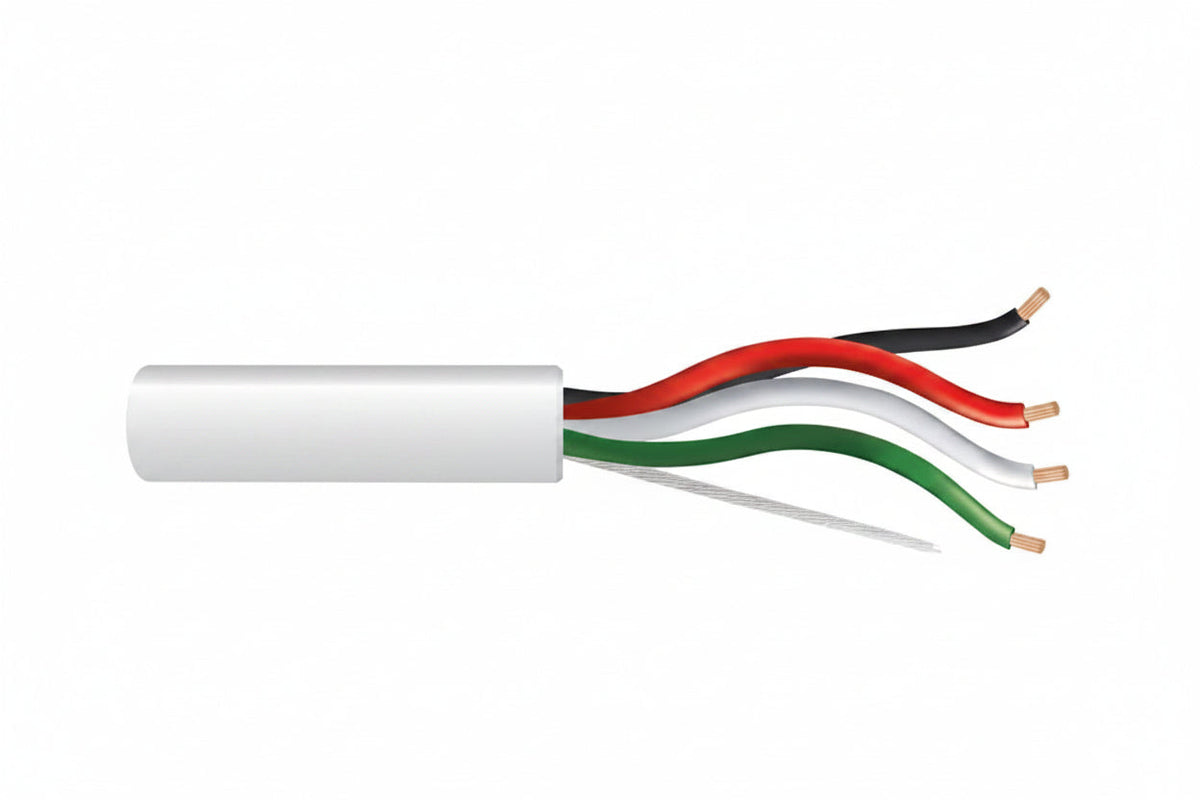

Genesis 21151101 18/4 Stranded Unshielded

The Genesis 21151101 is an 18 AWG, 4-conductor stranded, unshielded riser (CMR, FT4) cable in white, supplied in a 1000' (304.8 m) REELEX pull box. It suits installers running fire, security and control wiring indoors. Bare copper conductors, a rip cord for stripping the jacket and countdown length markings make it easier to work with on longer pulls.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Polypropylene insulation surrounds each conductor, under a PVC jacket.
• A built-in rip cord makes stripping and removing the jacket more efficient.
• Countdown length markings let you track how much cable you have used and how much remains.
• The cable is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• It is sunlight resistant (UV) rated and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 21151101

Product Type: Security & Control Cables

Cable Rating: Riser

American Wire Gauge: 18AWG

Number of Conductors: 4

Conductor Material: Bare Copper

Solid or Stranded: Stranded

Shielding: No

Armored: No

Insulation Material: PP

Jacket Material: PVC

Jacket Type: Outdoor

Color: White

Indoor/Outdoor: Indoor

Cable Length: 1000.00'

Package Type: REELEX Pull Box

Packaged Quantity: 1

Voltage Rating: 300 V

Temperature Rating: -20 °C to 75 °C

Environmental Certification: RoHS

TAA Compliant: Yes

Country of Origin: US

Installation notes

Pull the cable from the box so it feeds freely, and avoid kinking or sharp bends along the route. Use the length markings to plan your runs and cut to length, and confirm the riser rating suits the pathway before you install.
