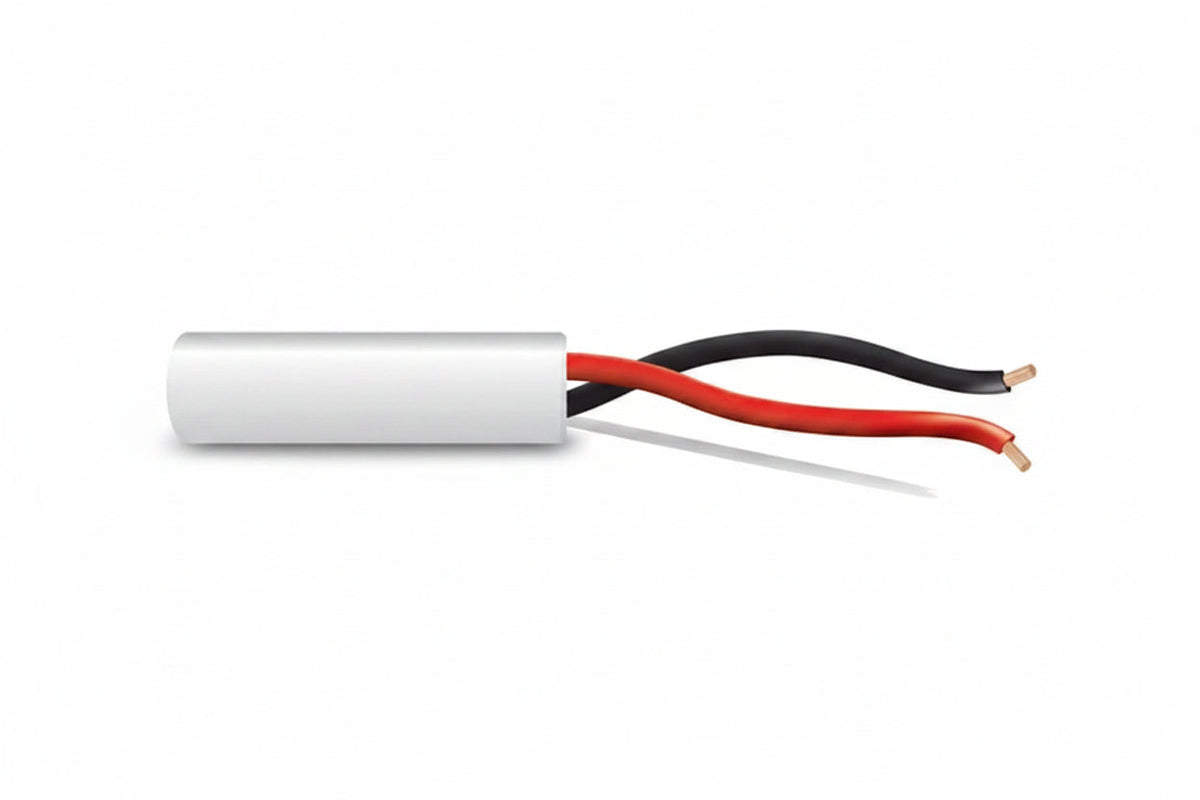

Genesis 21145801 18/2 Stranded Unshielded Cable, Riser, CMR, FT4, 500' Speed Bag, White

The Genesis 21145801 is a 500-foot speed bag of 18/2 stranded, unshielded riser-rated (CMR, FT4) cable in a white jacket. It suits fire alarm, security and control wiring in indoor runs, and it's a fit for installers who want a pull-ready package. Bare copper conductors, a rip cord and sequential length marking make it easy to work with and track on the job.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• A built-in rip cord lets you strip and remove the jacket quickly.
• Sequential length marking makes it easy to track how much cable you've used.
• The insulation is polypropylene and the jacket is PVC.
• It is sunlight (UV) resistant rated and REACH/RoHS compliant.
• It is rated for 300 volts and for -20 °C to 75 °C.

Specifications

Brand: Genesis

Model: 21145801

Product Type: Security & Control Cables

Gauge: 18 AWG

Number of Conductors: 2

Number of Pairs: 1

Conductor Material: Bare Copper

Construction: Stranded

Shielding: No

Armored: No

Insulation Material: PP

Rating: Riser, CMR, FT4

Length and Packaging: 500′ (152.4 m) Speed Bag

Color: White

Indoor/Outdoor: Indoor

Voltage Rating: 300 V

Temperature Rating: -20 °C to 75 °C

Environmental Certification: RoHS

TAA Compliant: Yes

Country of Origin: US

Installation notes

Use the sequential length markings to measure each run and cut to length with minimal waste. Because this is an indoor, riser-rated cable, route it through approved indoor pathways and keep it clear of high-voltage wiring and sharp edges.
