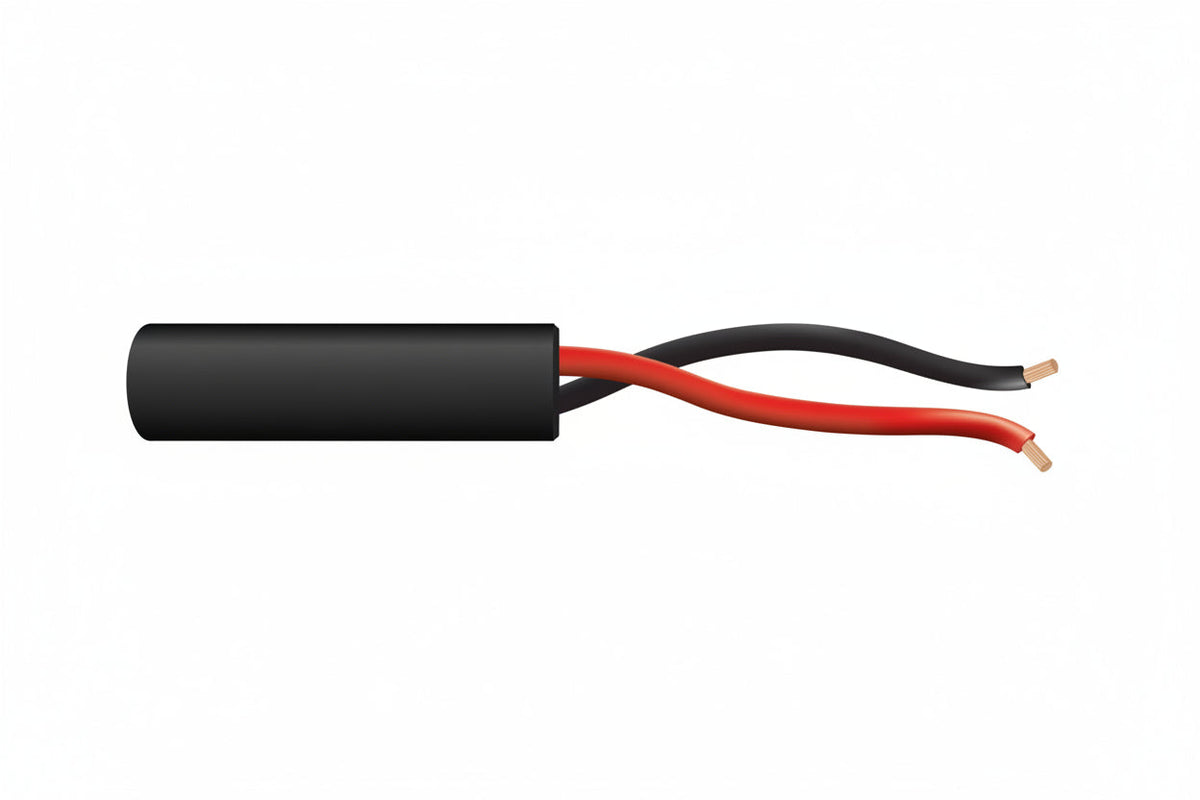

Genesis 21141108 18/2 Stranded Unshielded Cable, Riser, CMR, FT4, 1000' (304.8 m) Pull Box, Black

The Genesis 21141108 is an 18/2 stranded, unshielded riser-rated (CMR, FT4) cable that comes in a 1000' (304.8 m) pull box with a black jacket. It suits security and control wiring runs inside a building, such as installers pulling power or control conductors between floors. Bare copper conductors and a rip cord for jacket removal make it easy to work with, and the countdown length markings help you track how much cable is left.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• A durable rip cord makes stripping and removing the jacket more efficient.
• Countdown length markings let you see how much cable you have used and how much remains.
• Polypropylene insulation sits under a PVC jacket.
• The cable is sunlight resistant (UV) rated and REACH/RoHS compliant.
• It is rated for 300 volts and for -20 °C to 75 °C.

Specifications

Brand: Genesis

Model: 21141108

Product Type: Security & Control Cables

Rating: Riser, CMR, FT4

Packaging: 1000' (304.8 m) Pull Box

Color: Black

American Wire Gauge: 18AWG

Number of Conductors: 2

Number of Pairs: 1

Solid or Stranded: Stranded

Conductor Material: Bare Copper

Insulation Material: PP

Shielding: No

Armored: No

Indoor/Outdoor: Indoor

Environmental Certification: RoHS

TAA Compliant: Yes

Country of Origin: US

Installation notes

Pull the cable from the box without kinks or sharp bends, and keep it clear of sharp edges as you route it. Use the countdown markings to measure each run before cutting, and label both ends so the circuits are easy to identify at commissioning.
