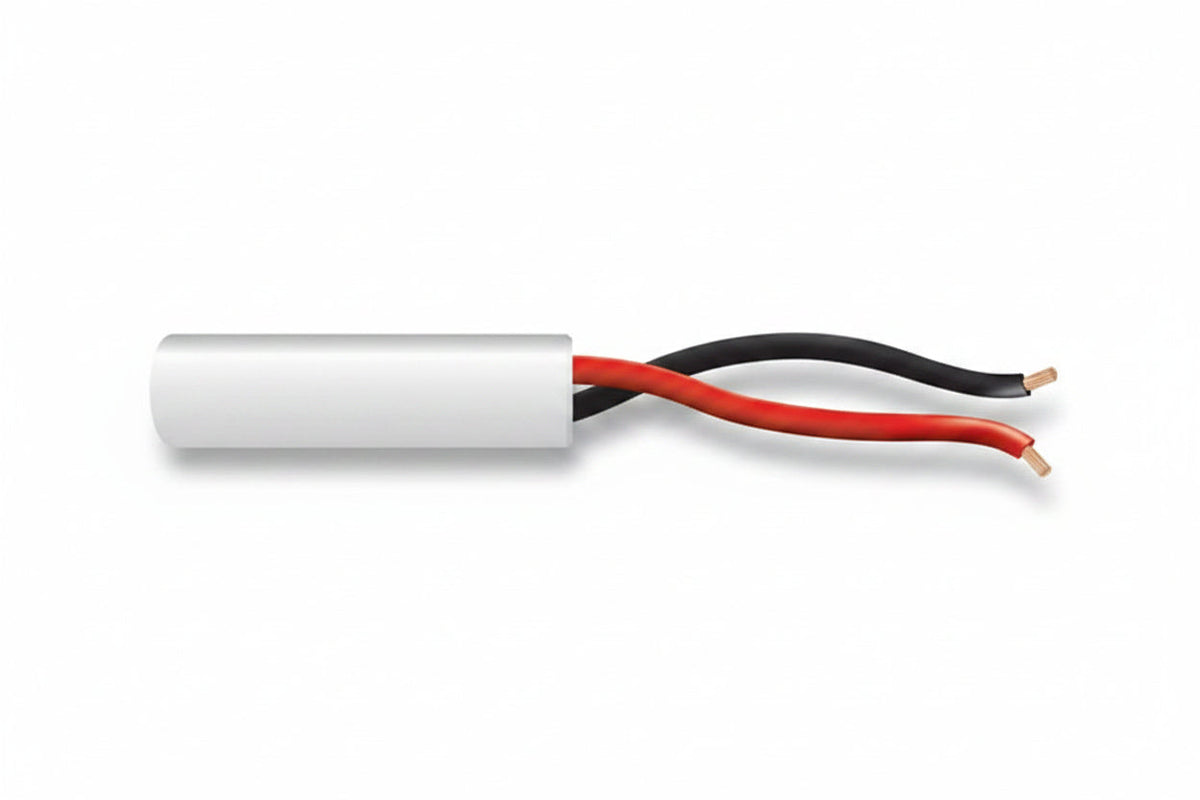

Genesis 21141101 18/2 Stranded Unshielded Cable, Riser, CMR, FT4, 1000' (304.8 m) Pull Box, White

The Genesis 21141101 is an 18 AWG, 2-conductor stranded unshielded control cable sold in a 1000' (304.8 m) pull box in white. It is a riser-rated (CMR, FT4) cable for indoor low-voltage runs, suited to installers who need a basic fire/security or control cable. The countdown length markings and built-in rip cord make it easier to pull, measure and strip on the job.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Polypropylene insulation sits under a PVC jacket.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings make it easy to track how much cable you have used and how much remains.
• The cable is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• It is sunlight resistant (UV) rated and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 21141101

Product type: Security & Control Cables

Gauge: 18 AWG

Conductors: 2

Pairs: 1

Conductor type: Stranded

Conductor material: Bare copper

Insulation: Polypropylene (PP)

Jacket: PVC

Shielding: No

Armored: No

Rating: Riser, CMR, FT4

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Color: White

Length and packaging: 1000' (304.8 m) pull box

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Installation notes

Because this cable is unshielded, keep it separated from higher-voltage power wiring where possible. Pull it from the box without kinking, and use the length markings to cut runs to size and keep track of what is left.
