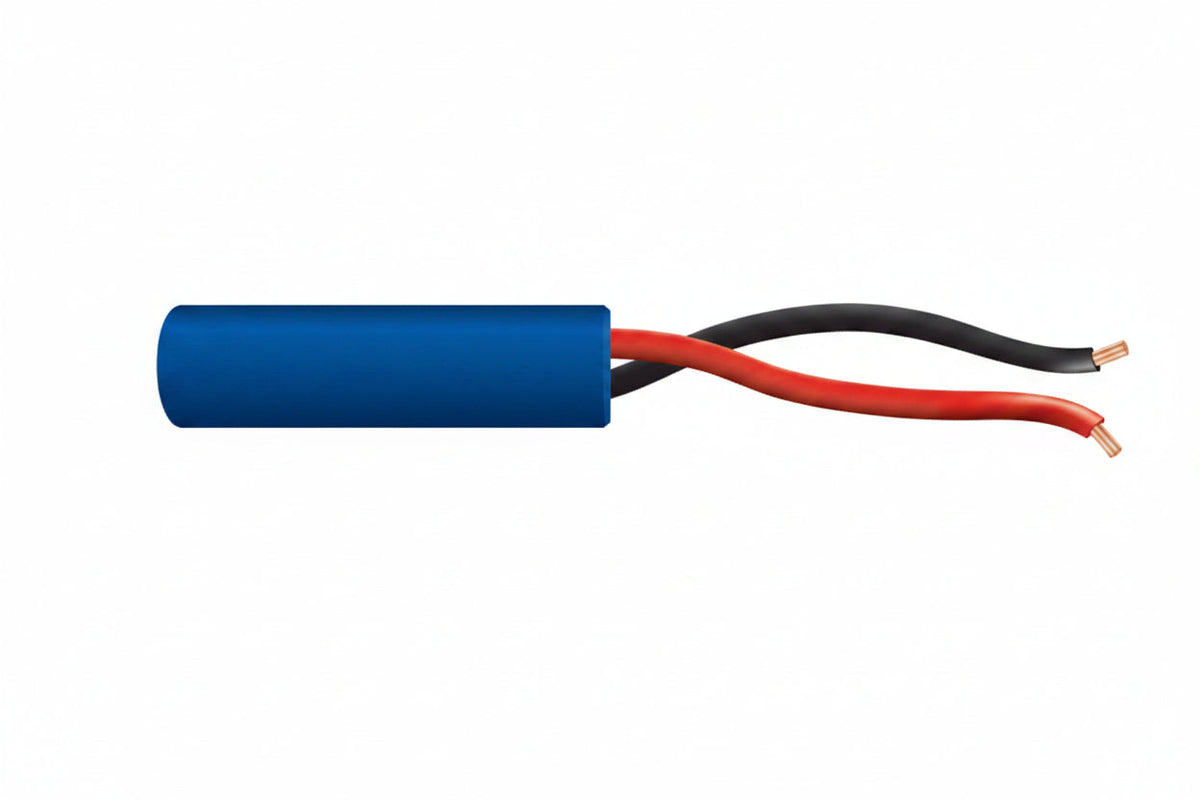

Genesis 21025806 22/2 Stranded Unshielded Cable, Riser, CMR, FT4, 250' (76.2 m) Speed Bag, Blue

The Genesis 21025806 is a 22 AWG, 2-conductor stranded cable with a riser (CMR) rating, supplied as a 250' (76.2 m) blue speed bag. It suits security, controls, audio and other low-voltage runs inside a building. The bare copper conductors, rip cord and sequential length marking make it easy to pull, strip and track.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Polypropylene insulation sits under a PVC jacket.
• A rip cord lets you strip and remove the jacket efficiently.
• Sequential length marking makes it easy to track how much cable you have used.
• It is rated for 300 volts and for -20 °C to 75 °C.
• It is sunlight resistant (UV) rated and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 21025806

Type: Security & Control Cables

Rating: Riser, CMR, FT4

Length: 250' (76.2 m)

Packaging: Speed bag

Color: Blue

American Wire Gauge: 22 AWG

Number of Conductors: 2

Number of Pairs: 1

Conductor Material: Bare Copper

Solid or Stranded: Stranded

Insulation Material: PP

Jacket: PVC

Shielding: No

Armored: No

Indoor/Outdoor: Indoor

Voltage Rating: 300 V

Temperature Rating: -20 °C to 75 °C

Environmental Certification: RoHS

TAA Compliant: Yes

Country of Origin: US

Installation notes

Because this cable is unshielded, route it away from sources of electrical noise and high-voltage wiring where possible. Use the rip cord to open the jacket cleanly, and keep to a gentle bend radius when pulling through walls and conduit.
