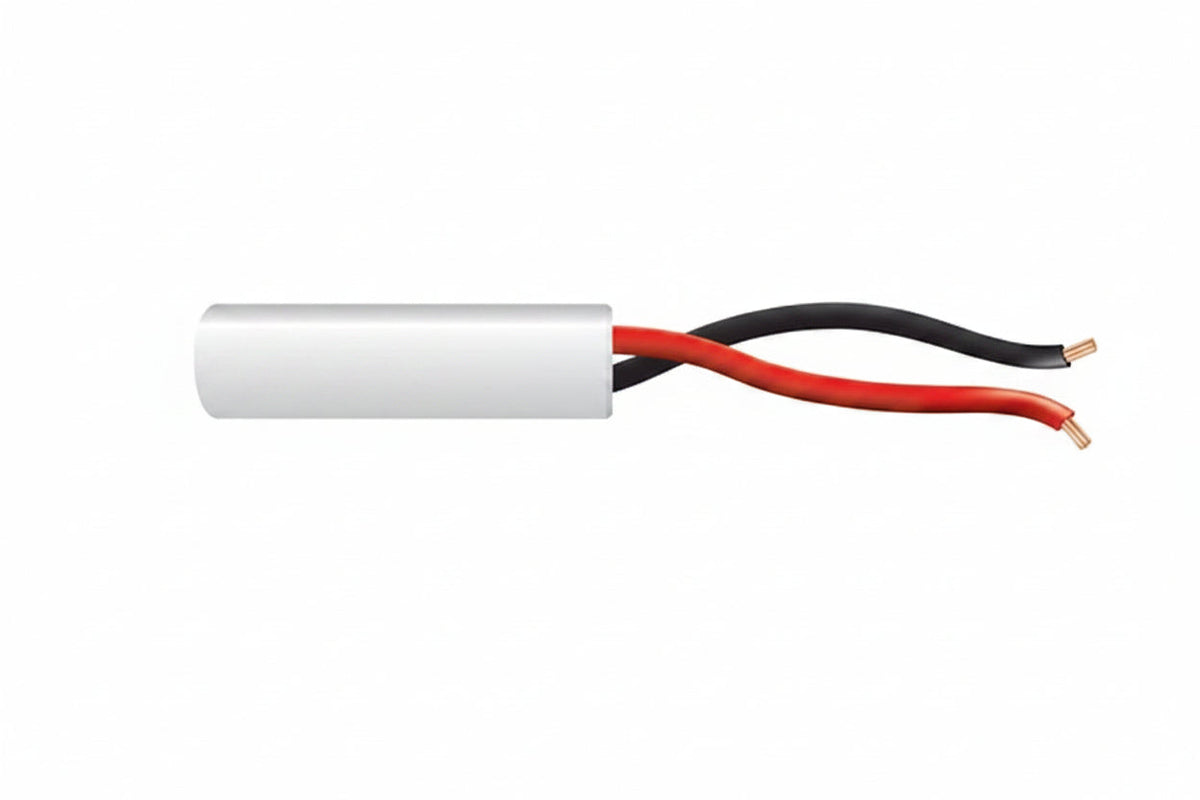

Genesis 21025801 22/2 Stranded Unshielded Cable, Riser, CMR, FT4, 250' (76.2 m) Speed Bag, White

The Genesis 21025801 is a 22/2 stranded, unshielded riser cable (CMR, FT4) with bare copper conductors and a white PVC jacket. It is sold as a 250' (76.2 m) speed bag. It suits installers running low-voltage security, controls and audio circuits indoors. The rip cord and sequential length marking make jacket removal and tracking usage easier.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Polypropylene insulation sits under a PVC jacket.
• A rip cord lets you strip and remove the jacket efficiently.
• Sequential length marking makes it easy to track how much cable you have used.
• It is rated for 300 volts and for -20 °C to 75 °C.
• It is sunlight resistant (UV) rated and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 21025801

Product type: Riser Fire / Security Cable

Gauge: 22 AWG

Conductors: 2 (1 pair)

Conductor material: Bare copper

Construction: Stranded

Shielding: No

Armored: No

Insulation: Polypropylene (PP)

Jacket: PVC

Rating: Riser, CMR, FT4

Length and packaging: 250' (76.2 m) speed bag

Color: White

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Installation notes

Use the length markings to plan your pulls and estimate what is left on the bag before you start a run. Keep the cable away from power wiring where practical, and follow local code for riser-rated cable when passing between floors.
