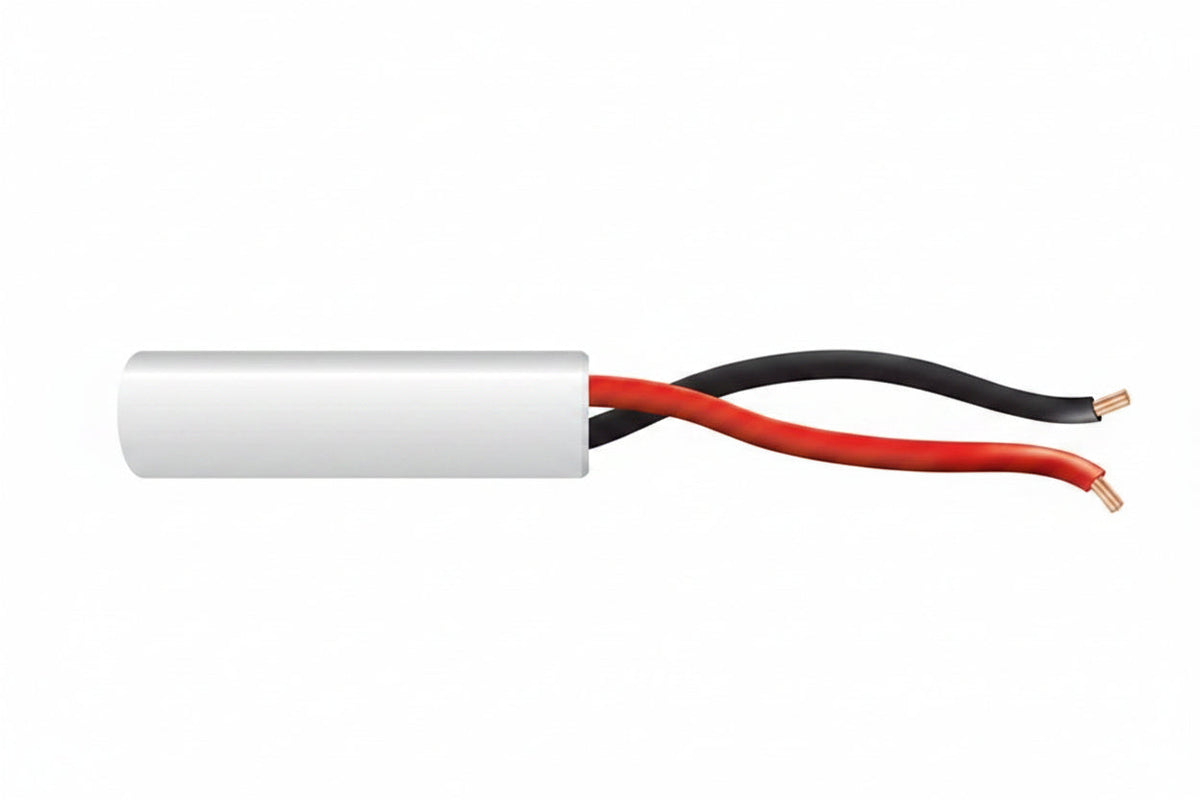

Genesis 21021101 22/2 Stranded Unshielded Cable, Riser, CMR, FT4, 1000' (304.8 m) Pull Box, White

The Genesis 21021101 is a 22 AWG, 2-conductor stranded copper cable with a riser (CMR) rating, supplied in a 1000' (304.8 m) pull box in white. It suits security, controls, audio and other low-voltage runs inside a building, for installers and integrators who want a dependable, unshielded cable. Countdown length markings and a rip cord make it easier to track usage and strip the jacket.

Key features

• Bare copper conductors give excellent conductivity and low voltage drop.
• Polypropylene insulation is paired with a PVC jacket.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings show how much cable you have used and how much is left.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• It is sunlight resistant (UV) rated and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 21021101

Product type: Riser Fire / Security Cable

Gauge: 22 AWG

Conductors: 2 (1 pair)

Conductor material: Bare copper

Construction: Stranded

Insulation: Polypropylene (PP)

Jacket: PVC

Rating: Riser, CMR, FT4

Shielding: No (unshielded)

Armored: No

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Color: White

Length and packaging: 1000' (304.8 m) pull box

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Installation notes

Pull the cable from the box straight off the top to avoid kinks and twists, and keep the pull tension gentle on the stranded conductors. Because it is unshielded, route it away from high-voltage and noisy power wiring, and use the countdown markings to cut runs to length.
