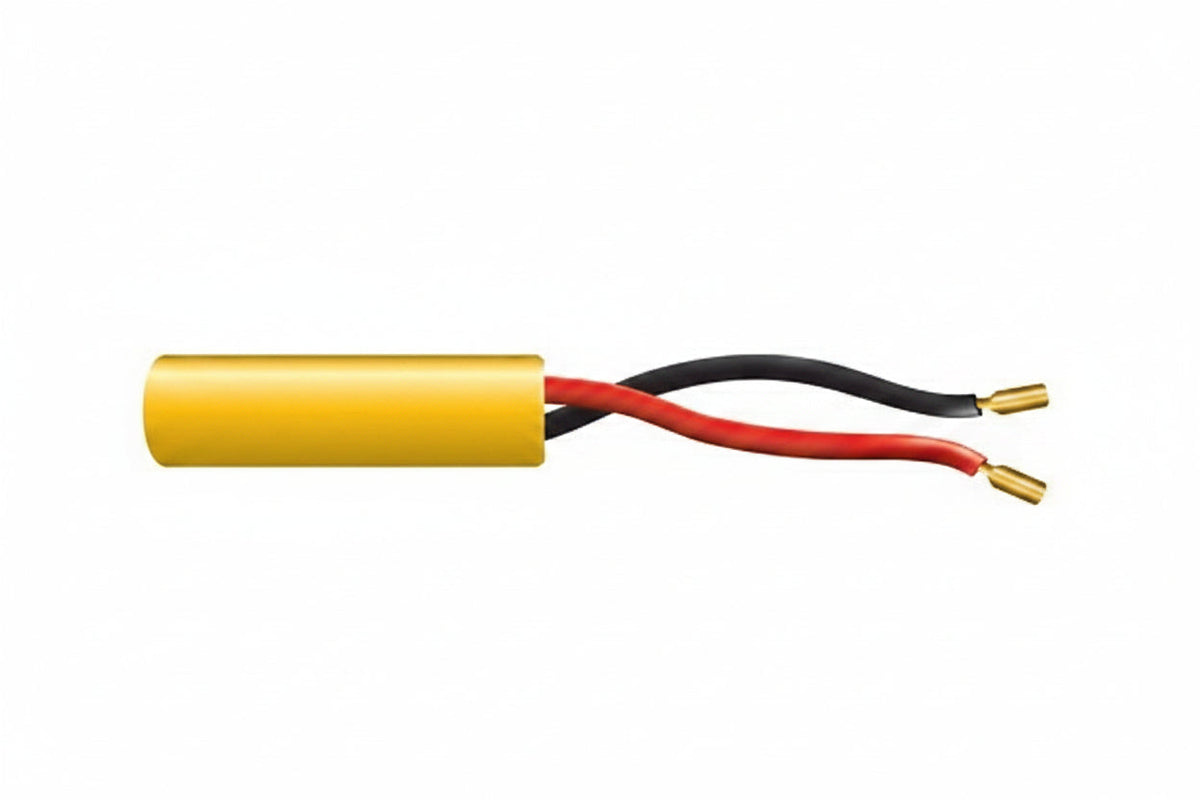

Genesis 21015802 22/2 Solid Unshielded Cable, Riser, CMR, FT4, 250' (76.2 m) Speed Bag, Yellow

The Genesis 21015802 is a 22 AWG, 2-conductor solid bare copper cable with an unshielded, riser-rated (CMR, FT4) PVC jacket, supplied as a 250′ (76.2 m) yellow speed bag. It suits security, controls, audio and other low-voltage runs inside a building. The polypropylene insulation, rip cord and sequential length marking make it easy to work with on the job.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Polypropylene insulation sits under a PVC jacket.
• A rip cord lets you strip and remove the jacket cleanly.
• Sequential length marking makes it easy to track how much cable you have used.
• It is rated for 300 volts and for -20 °C to 75 °C.
• It is sunlight resistant (UV) rated and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 21015802

Type: Riser fire / security cable

Rating: Riser, CMR, FT4

Length: 250′ (76.2 m)

Packaging: Speed bag

Color: Yellow

American Wire Gauge: 22 AWG

Conductors: 2 (1 pair)

Conductor material: Bare copper

Solid or stranded: Solid

Insulation material: Polypropylene (PP)

Jacket: PVC

Shielding: No

Armored: No

Indoor/Outdoor: Indoor

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Installation notes

Because this cable is unshielded, keep it separated from high-voltage and noisy power wiring where practical. Use the length markings to confirm your run before cutting, and pull gently so you don't stress the conductors or jacket.
