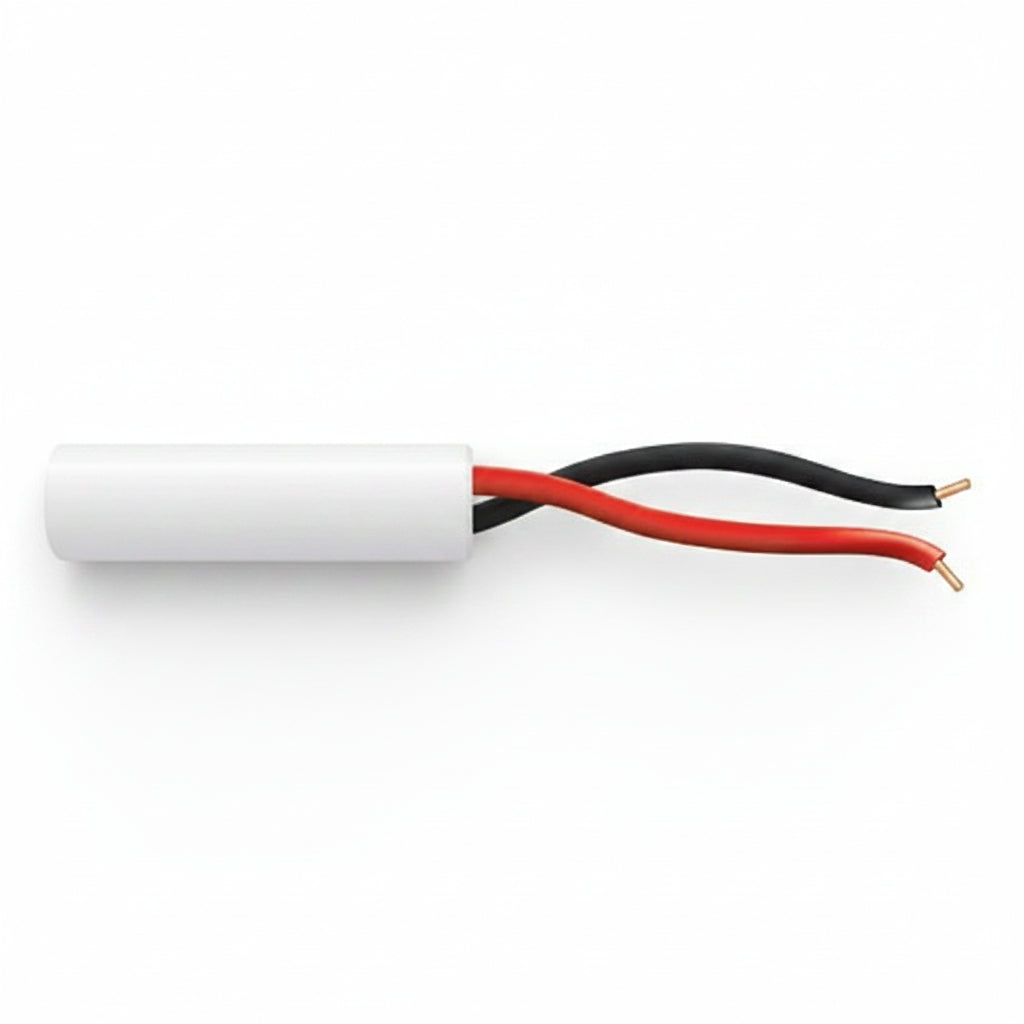

Genesis 21015801 22/2 Solid Unshielded Cable, Riser, CMR, FT4, 500' (152.4 m) Speed Bag, White

The Genesis 21015801 is a 22 AWG, 2-conductor solid bare copper cable with a riser (CMR, FT4) rating, supplied as a 500' (152.4 m) white Speed Bag. It suits security, controls, audio and other low-voltage runs inside a building, and it is a good fit for installers who want a riser-rated, unshielded single-pair cable. The built-in rip cord and sequential length marking make jacket removal and run tracking easier on the job.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Polypropylene insulation is paired with a PVC jacket.
• A rip cord allows quick, clean jacket stripping and removal.
• Sequential length marking makes it easy to track how much cable you have used.
• Rated for 300 volts and for temperatures from -20 °C to 75 °C.
• UV sunlight-resistant rating, and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 21015801

Product Type: Security & Control Cables

Rating: Riser, CMR, FT4

Length: 500' (152.4 m)

Packaging: Speed Bag

Color: White

American Wire Gauge: 22 AWG

Number of Conductors: 2

Number of Pairs: 1

Solid or Stranded: Solid

Conductor Material: Bare Copper

Insulation Material: PP

Shielding: No

Armored: No

Indoor/Outdoor: Indoor

Voltage Rating: 300 V

Temperature Rating: -20 °C to 75 °C

Environmental Certification: RoHS

TAA Compliant: Yes

Country of Origin: US

Installation notes

Use the sequential length marking to plan pulls and avoid running short, and leave some slack at each termination point. Because this cable is unshielded and listed for indoor use, route it away from sources of electrical noise and keep it inside the building.
