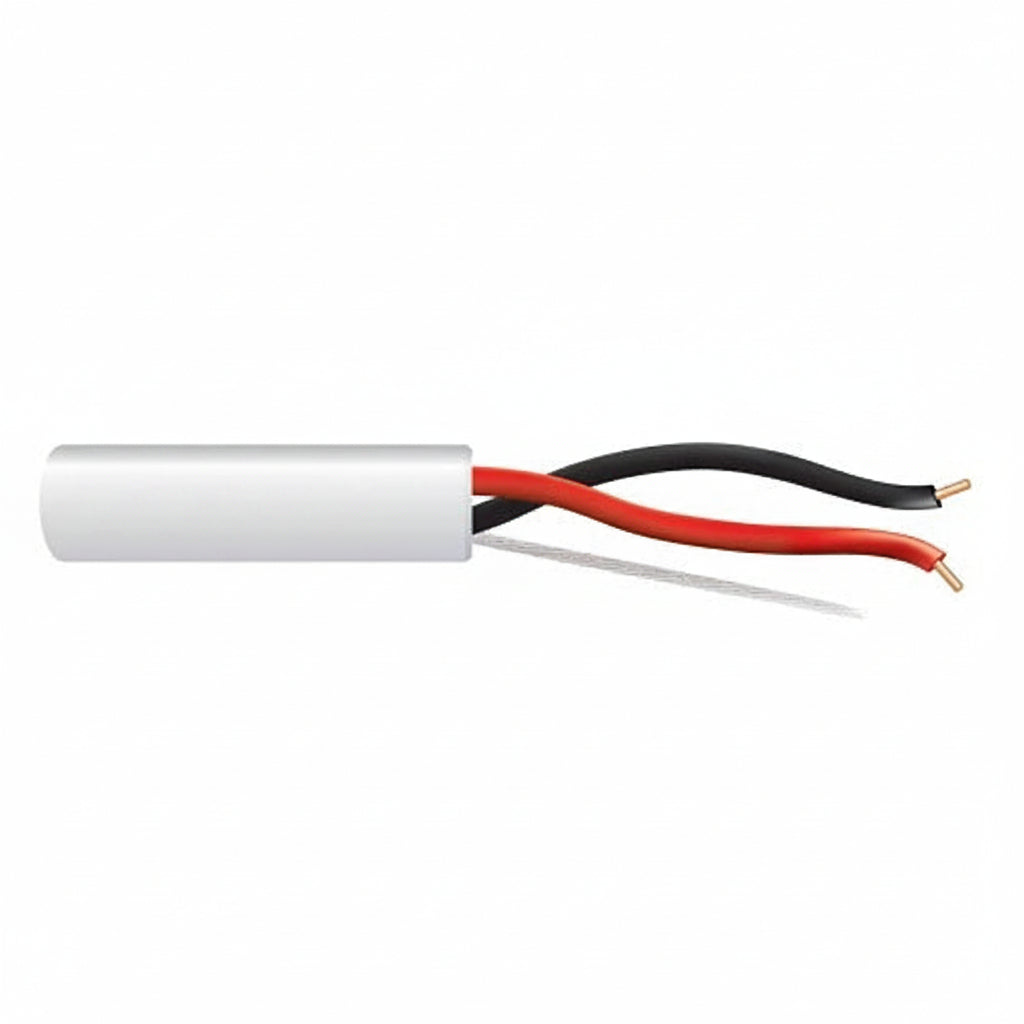

Genesis 43061101 Fire Alarm Cable, FPLR

The Genesis 43061101 is an 18 AWG, 2-conductor solid bare copper fire alarm cable with a white PVC jacket, rated FPLR (riser). It comes in a 1000' (304.8 m) pull box and is built for indoor fire alarm runs. Unshielded and countdown-marked, it suits installers who want easy jacket stripping and simple tracking of cable used.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings show how much cable you have used and how much remains.
• Polypropylene insulation sits under a PVC jacket.
• The jacket is rated sunlight resistant (UV).
• It is rated for 300 volts and for -20 °C to 75 °C.

Specifications

Brand: Genesis

Model: 43061101

Product name: 4306-11-01 Control Cable

Type: Fire Alarm Cable

Rating: FPLR (Riser)

Gauge: 18 AWG

Conductors: 2 (1 pair)

Conductor material: Bare copper

Construction: Solid

Insulation: Polypropylene (PP)

Jacket: PVC

Shielding: No

Armored: No

Color: White

Length and packaging: 1000' (304.8 m) pull box

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Environmental: RoHS; REACH/RoHS compliant

TAA compliant: Yes

Country of origin: US

Weight: 14.40 lb

Installation notes

Pull the cable from the box using the countdown markings to plan each run and avoid running short. Because the cable is unshielded, keep it routed away from sources of electrical noise and follow local code for riser and fire alarm wiring.
