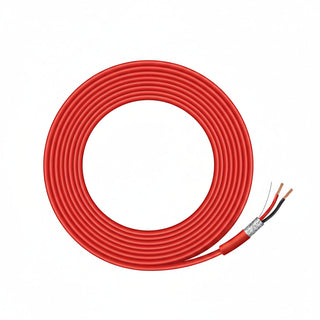

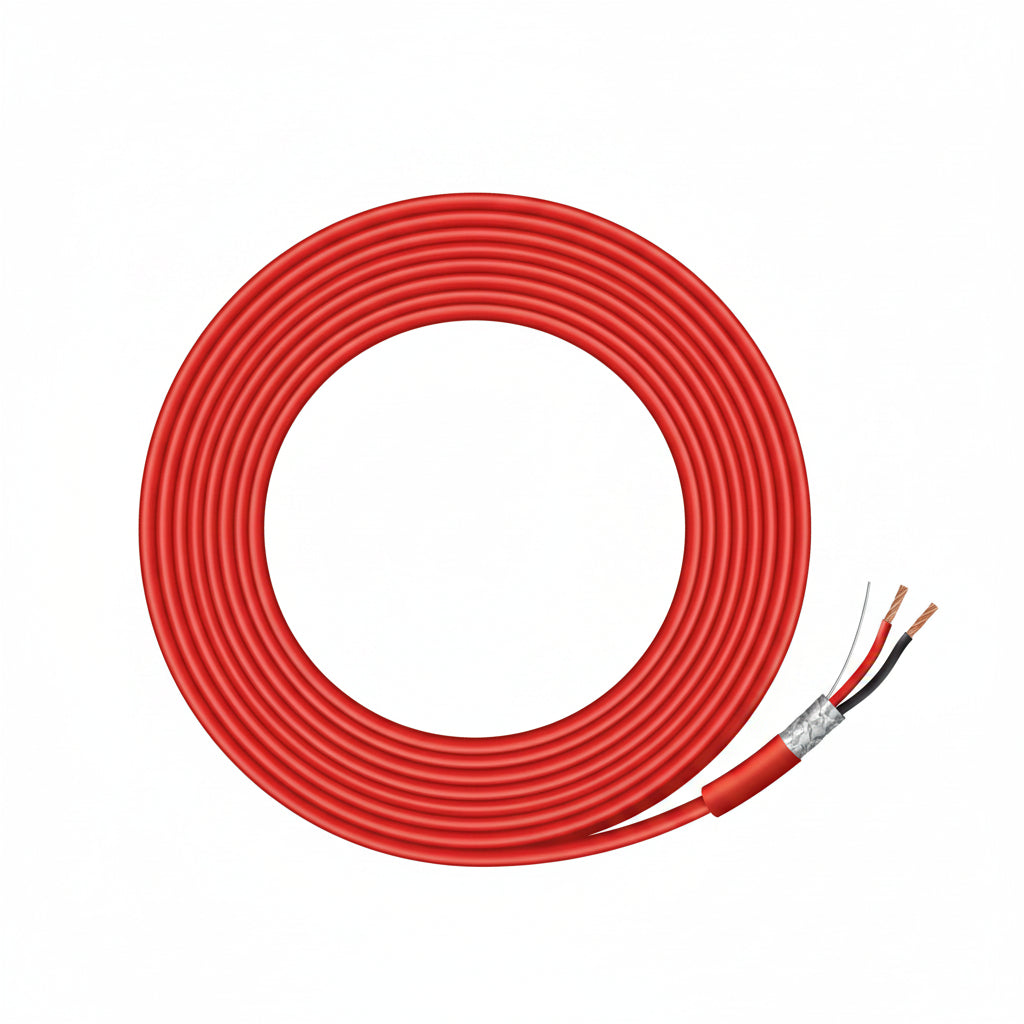

Genesis 46025504 18/2 Solid Shielded Fire Alarm Cable, Plenum, FPLP, 500' (152.4 m) Pull Box, Red

The Genesis 46025504 is an 18/2 solid shielded fire alarm cable in a plenum-rated FPLP jacket, supplied in a 500' (152.4 m) pull box in red. It carries two solid bare copper conductors under an overall foil shield with a drain wire, so it suits installers wiring fire alarm circuits indoors. Countdown length markings and a rip cord make it easier to track footage and strip the jacket on the job.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation surrounds the conductors.
• A foil shield covers all conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings show how much cable you have used and how much is left.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.

Specifications

Brand: Genesis

Model: 46025504

Type: Fire alarm cable

Rating: Plenum, FPLP

Length and packaging: 500' (152.4 m) pull box

Color: Red

Gauge and conductors: 18 AWG, 2 conductors (1 pair)

Conductor type: Solid bare copper

Insulation: LS-PVC

Shielding: Yes, foil shield with drain wire

Armored: No

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Environmental compliance: RoHS, REACH/RoHS compliant

TAA compliant: Yes

Country of origin: US

Weight: 8.90 lb

Installation notes

This cable is rated for indoor use only, so keep it inside the building. Connect the shield and drain wire according to the fire alarm panel manufacturer's instructions, and use the countdown markings to plan each run before you cut.
