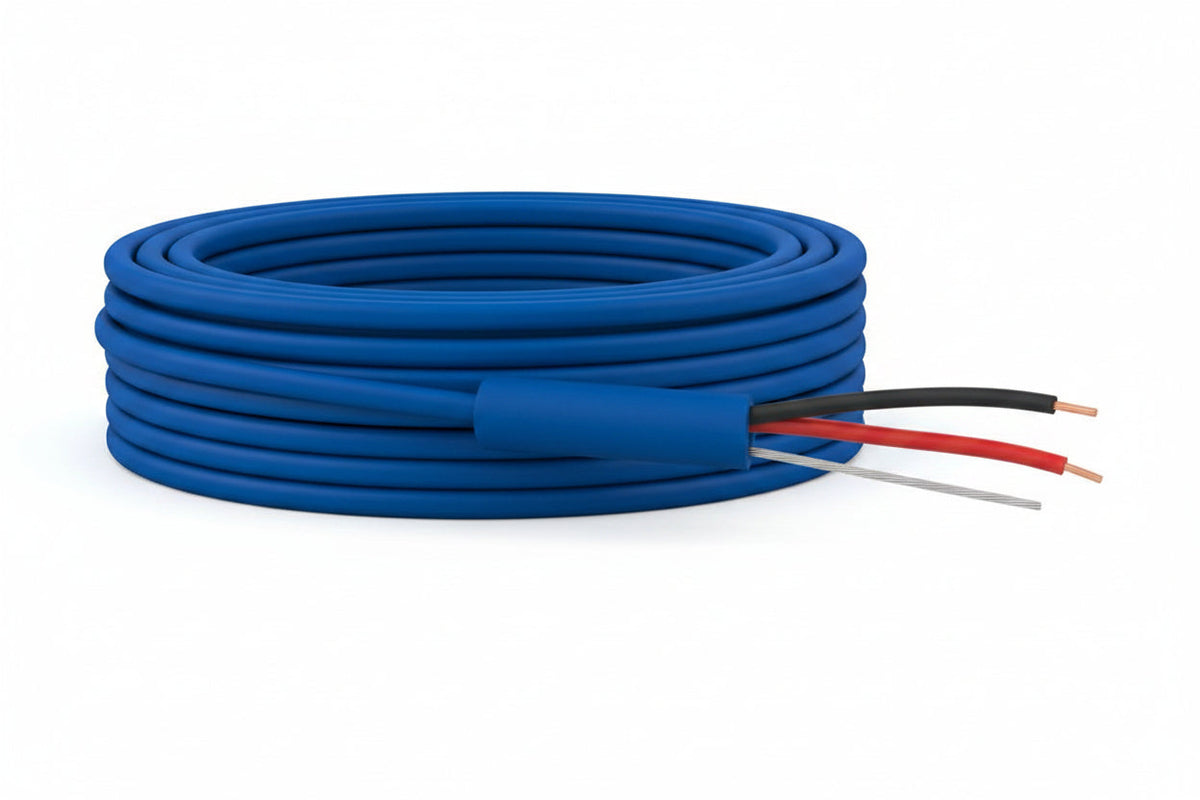

Genesis 45131006 14/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Blue

The Genesis 45131006 is a 14/2 solid, unshielded fire alarm cable in a plenum-rated (FPLP) jacket, supplied on a 1000' (304.8 m) reel in blue. It carries power and signal for fire alarm circuits in indoor installations, and suits installers who need a solid bare copper 14 AWG cable with a low-smoke PVC insulation. Countdown length markings and a rip cord make it easier to track and strip on longer runs.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings show how much cable you have used and how much remains.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• The cable is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 45131006

Product Type: Fire Alarm Cable

Rating: Plenum, FPLP

Length/Packaging: 1000' (304.8 m) Reel

Color: Blue

Conductors: 2 (1 pair)

Gauge: 14 AWG

Conductor Material: Bare Copper

Solid or Stranded: Solid

Insulation Material: LS-PVC

Shielding: No

Armored: No

Indoor/Outdoor: Indoor

Voltage Rating: 300 V

Temperature Rating: -20 °C to 75 °C

Environmental Certification: RoHS

TAA Compliant: Yes

Country of Origin: US

Installation notes

Use the rip cord to open the jacket cleanly, and check the countdown markings before cutting so each run is sized correctly. This is an indoor, unshielded cable, so keep it away from sources of electrical interference and follow local code and the panel manufacturer's wiring requirements.
