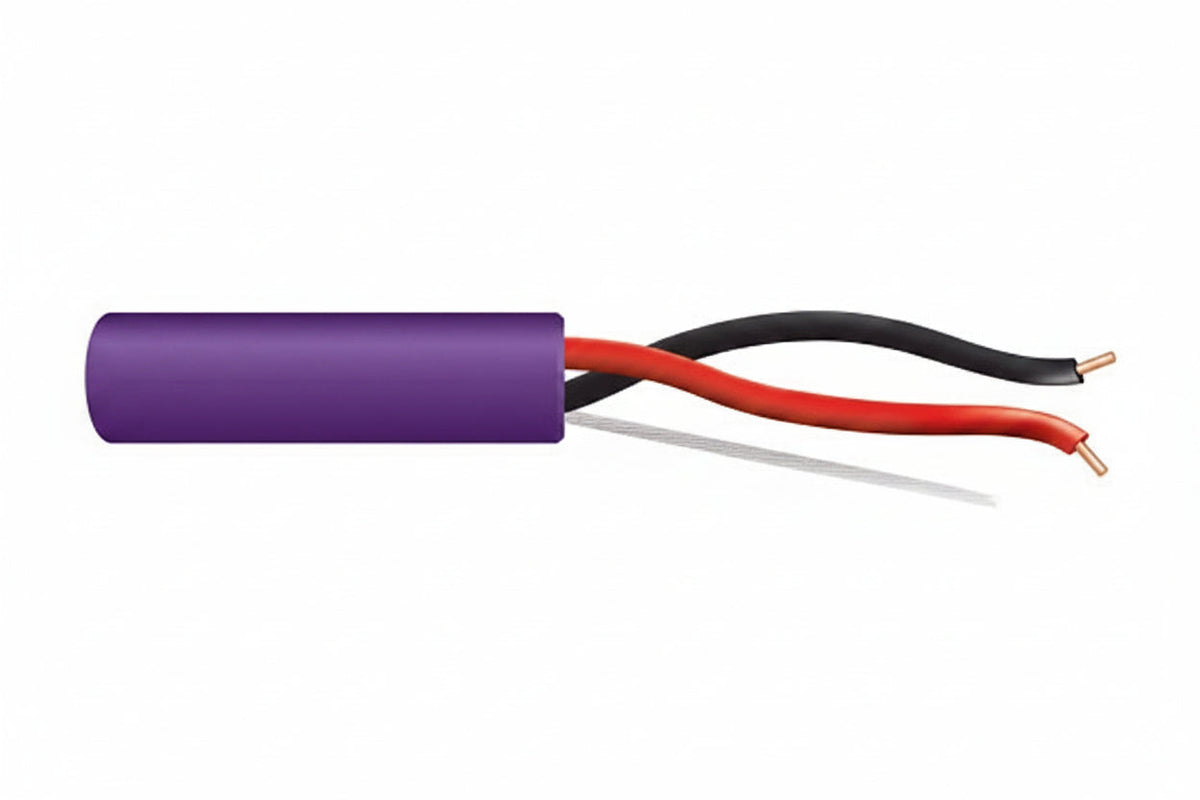

Genesis 45111010 16/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Purple

The Genesis 45111010 is a 16/2 solid, unshielded power-limited fire alarm cable with a plenum (FPLP) rating, supplied on a 1000' (304.8 m) reel in purple. It suits installers running fire alarm circuits indoors, including plenum spaces. Bare copper conductors keep voltage drop low, and a rip cord and countdown length markings make the cable easier to strip and track on the job.

Key features

• Bare copper conductors give excellent conductivity and low voltage drop.
• Low-smoke PVC insulation covers the conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings make it easy to track how much cable you have used and how much remains.
• The cable is rated for 300 volts and for -20 °C to 75 °C.
• It is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 45111010

Product type: Fire Alarm Cable (Power Limited)

Rating: Plenum, FPLP

Length and packaging: 1000' (304.8 m) reel

Color: Purple

Gauge: 16 AWG (16/2)

Number of conductors: 2

Number of pairs: 1

Conductor material: Bare copper

Solid or stranded: Solid

Insulation material: LS-PVC

Shielding: No

Armored: No

Indoor/Outdoor: Indoor

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Installation notes

This is an indoor cable, so keep it within indoor routes and follow local code and the fire alarm panel manufacturer's instructions for the circuit. Use the countdown markings to measure each run before cutting, and use the rip cord to open the jacket cleanly before terminating the solid conductors.
