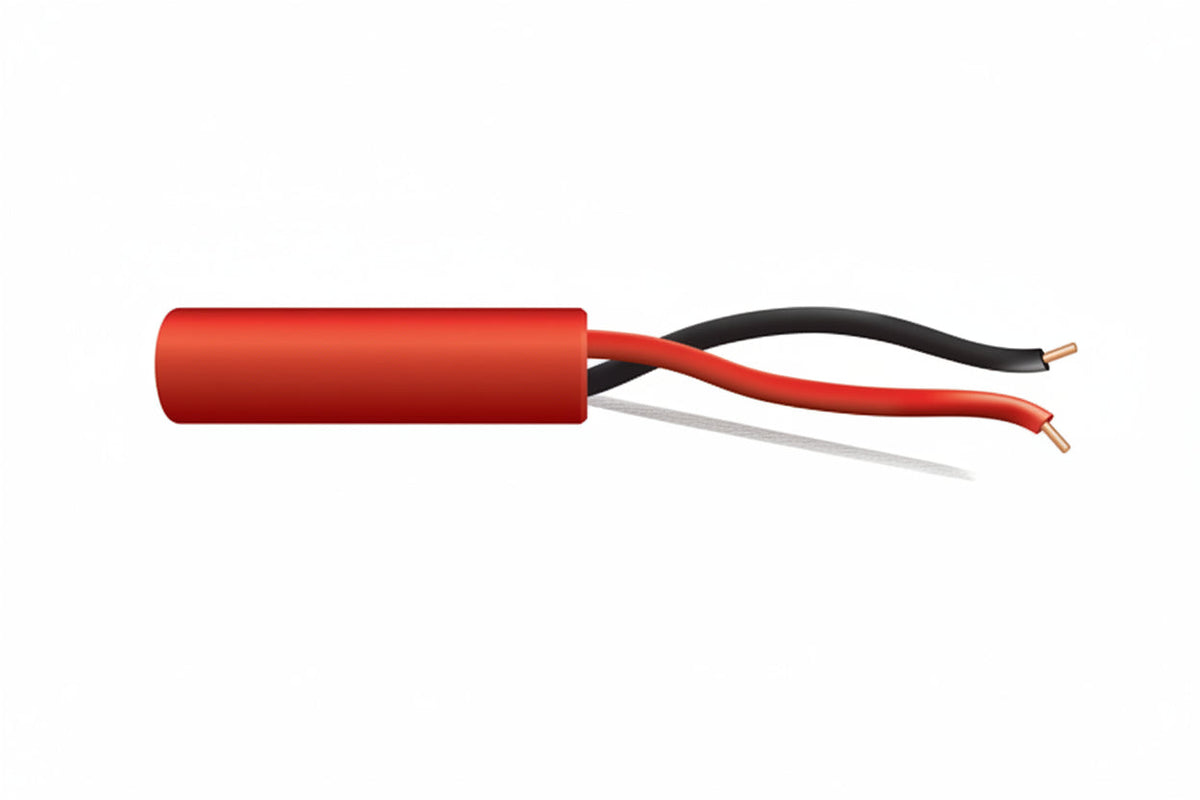

Genesis 45111004 16/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red

The Genesis 45111004 is a 16/2 solid, unshielded fire alarm cable with a plenum (FPLP) rating, supplied on a 1000' (304.8 m) reel in red. It carries two bare copper conductors for low-voltage fire alarm wiring, and suits installers and contractors running indoor fire alarm systems. Countdown length markings and a rip cord make it easier to track footage and strip the jacket.

Key features

• Bare copper conductors give good conductivity and keep voltage drop low.
• Low-smoke PVC insulation is used on the conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings show how much cable you have used and how much remains.
• It is rated for 300V and for temperatures from -20 °C to 75 °C.
• The cable is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 45111004

Product type: Fire Alarm Cable

Rating: Plenum, FPLP

Packaging: 1000' (304.8 m) reel

Color: Red

Size: 16/2, 16 AWG

Number of conductors: 2

Number of pairs: 1

Conductor type: Solid

Conductor material: Bare copper

Insulation: LS-PVC

Shielding: No (unshielded)

Armored: No

Indoor/Outdoor: Indoor

Voltage rating: 300V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 23.10 lb

Installation notes

This cable is for indoor use only, so keep runs inside the building and follow your local code and the fire alarm panel manufacturer's wiring requirements. Use the countdown markings to plan each run, and label both ends of every cable before you terminate.
