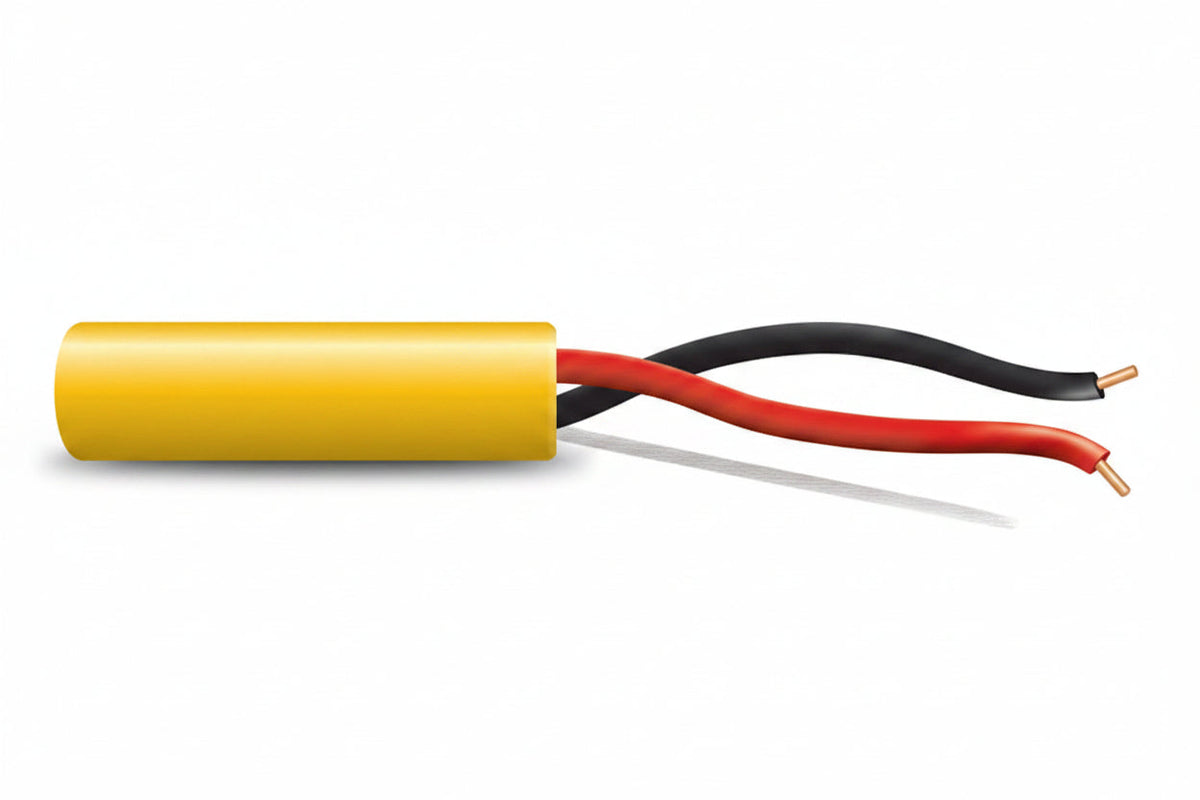

Genesis 45111002 16/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Yellow

The Genesis 45111002 is a 16/2 solid, unshielded fire alarm cable with a plenum (FPLP) jacket, supplied on a 1000' (304.8 m) reel in yellow. It is a control cable for indoor fire alarm wiring, suited to installers who need a plenum-rated, TAA-compliant cable made in the US. Bare copper conductors, a rip cord for stripping and countdown length markings make it easy to work with on larger runs.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings make it easy to track how much cable you have used and how much remains.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• It is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 45111002

Product name: 4511-10-02 Control Cable

Product type: Fire Alarm Cable

Gauge/conductors: 16/2

American Wire Gauge: 16AWG

Number of conductors: 2

Number of pairs: 1

Conductor material: Bare copper

Solid or stranded: Solid

Insulation material: LS-PVC

Shielding: No

Armored: No

Rating: Plenum, FPLP

Length: 1000' (304.8 m) reel

Color: Yellow

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Installation notes

This cable is for indoor use only, so keep it inside the building and follow the local code and the fire alarm panel manufacturer's requirements for routing and support. Use the countdown markings to cut runs to length and avoid pulling more cable than you need, and use the rip cord to open the jacket cleanly before terminating.
