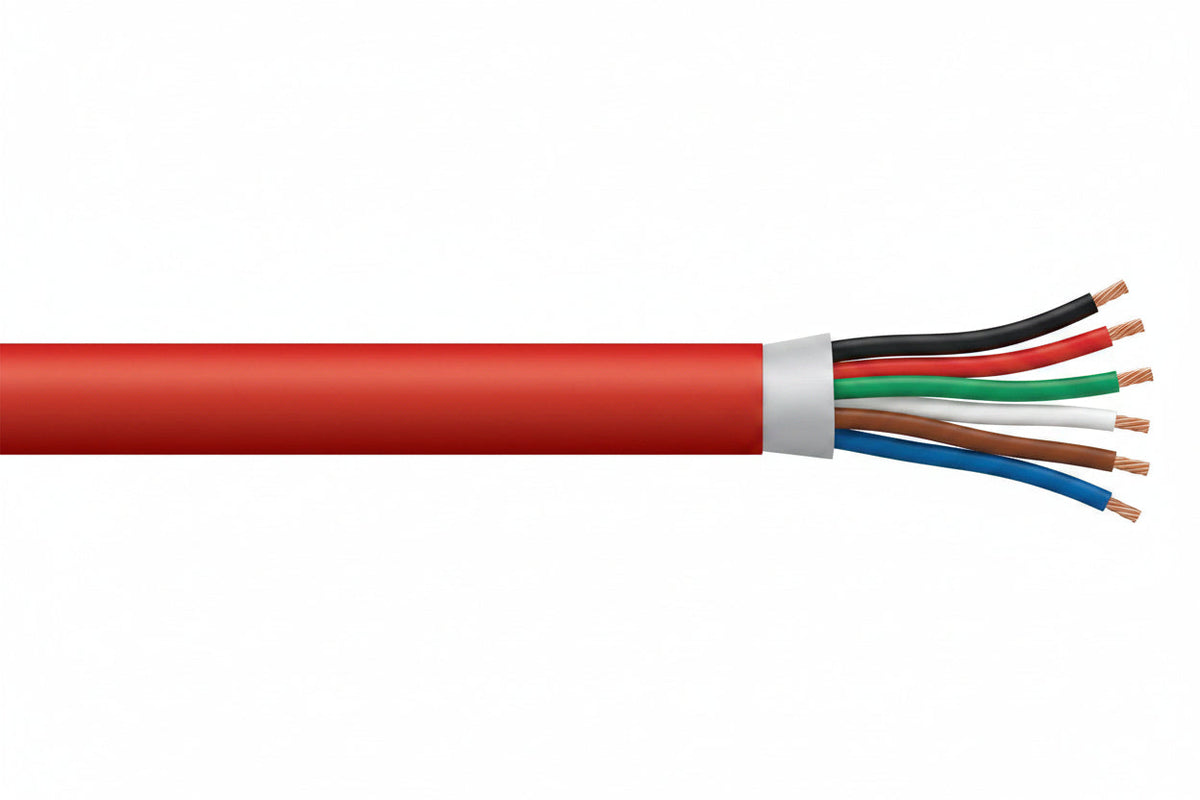

Genesis 45085004 18/6 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 500' (152.4 m) Reel, Red

The Genesis 45085004 is an 18 AWG, 6-conductor solid unshielded fire alarm cable with a plenum (FPLP) rating, supplied on a 500' (152.4 m) reel in red. It is built for fire alarm system wiring inside buildings, and suits installers and contractors who need a plenum-rated run. Bare copper conductors, low-smoke PVC insulation and countdown length markings are the standout details.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A rip cord makes it easier to strip and remove the jacket.
• Countdown length markings let you track how much cable you have used and how much remains.
• Rated for 300 volts and for temperatures from -20 °C to 75 °C.
• REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 45085004

Product type: Fire Alarm Cable

Rating: Plenum, FPLP

Length and packaging: 500' (152.4 m) reel

Color: Red

Conductors: 6

Gauge: 18 AWG

Conductor type: Solid

Conductor material: Bare copper

Insulation material: LS-PVC

Shielding: No

Armored: No

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 20.10 lb

Installation notes

This cable is rated for indoor use only, so keep it inside the building and follow local code for plenum spaces and fire alarm wiring. Use the countdown markings to plan pulls and cut lengths, and use the rip cord to open the jacket cleanly at terminations.
