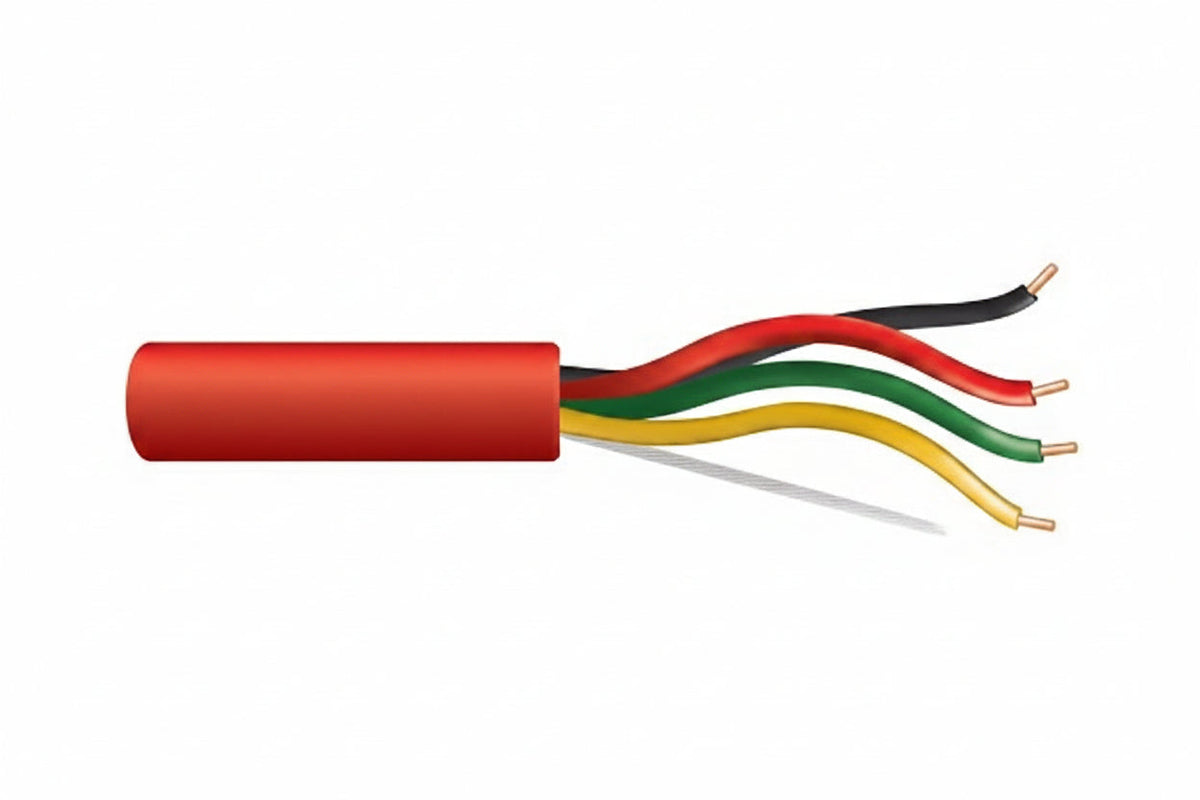

Genesis 45071004 18/4 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red

The Genesis 45071004 is an 18 AWG, 4-conductor solid bare copper fire alarm cable with a plenum (FPLP) rating, supplied on a 1000' (304.8 m) reel in red. It is unshielded and intended for indoor fire alarm system wiring. Countdown length markings and a rip cord for stripping the jacket make long pulls easier to manage.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings help you track how much cable you have used and how much is left.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• It is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 45071004

Product type: Fire Alarm Cable

Gauge/conductors: 18/4 (18 AWG, 4 conductors)

Conductor type: Solid

Conductor material: Bare Copper

Insulation material: LS-PVC

Rating: Plenum, FPLP

Shielding: No

Armored: No

Color: Red

Length/packaging: 1000' (304.8 m) reel

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 26.70 lb

Installation notes

Keep this indoor-only cable within its rated temperature range, and avoid sharp bends or excess pulling tension on long runs. Use the rip cord to open the jacket cleanly, and confirm the cable type is acceptable to the local authority having jurisdiction before you install it.
