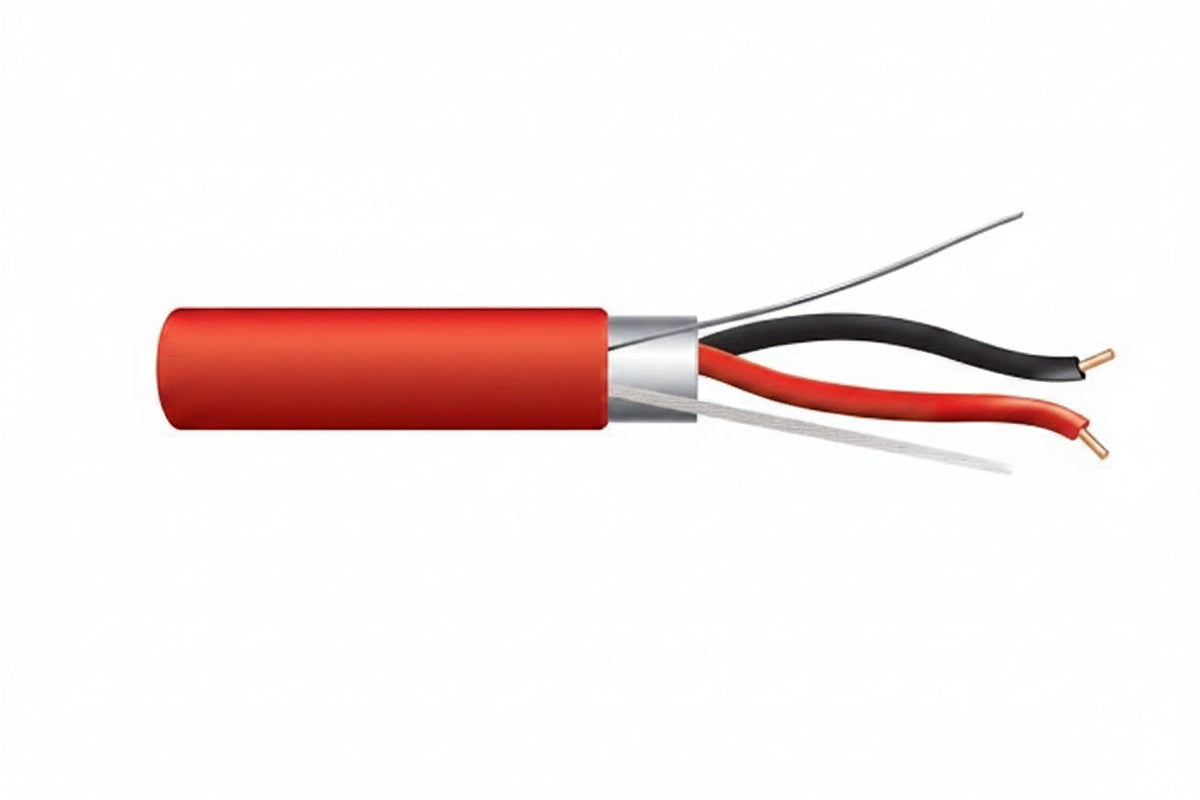

Genesis 44081004 14/2 Solid Shielded Fire Alarm Cable, Riser, FPLR, 1000' (304.8 m) Reel, Red

The Genesis 44081004 is a 14/2 solid shielded fire alarm cable with a riser (FPLR) rating, supplied on a 1000' (304.8 m) reel in red. It carries two solid bare copper conductors under an overall foil shield with a drain wire, and it is made for dependable fire alarm system wiring inside a building. Countdown length markings and a rip cord make it easier to pull, track and strip on larger runs.

Key features

• Bare copper conductors give excellent conductivity and low voltage drop.
• A foil shield covers all conductors, and polypropylene insulation sits under a PVC jacket.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings show how much cable you have used and how much is left on the reel.
• The jacket is sunlight resistant (UV) rated.
• The cable is REACH/RoHS compliant and rated for 300 volts.

Specifications

Brand: Genesis

Model: 44081004

Product type: Fire Alarm Cable

Construction: 14/2 solid

American Wire Gauge: 14 AWG

Number of conductors: 2

Number of pairs: 1

Conductor material: Bare copper

Insulation material: Polypropylene (PP)

Jacket: PVC

Shielding: Yes, foil shield over all conductors

Armored: No

Rating: Riser, FPLR

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Color: Red

Packaging: 1000' (304.8 m) reel

Weight: 35.50 lb

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Installation notes

Terminate the shield and drain wire according to the panel and device manufacturer's instructions, and keep them isolated from other grounds and conductors. Use the countdown markings to plan each pull, and verify the end-to-end continuity of the run before connecting it to the control panel.
