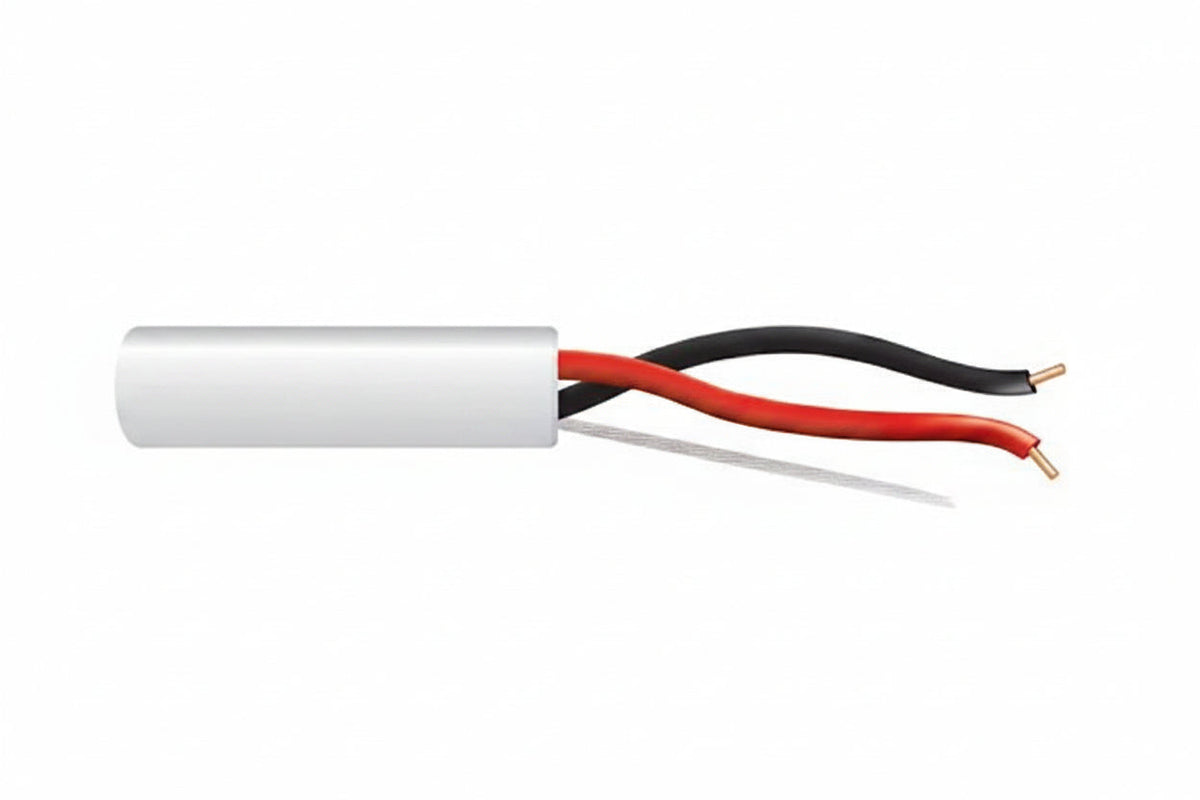

Genesis 43131001 14/2 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 1000' (304.8 m) Reel, White

The Genesis 43131001 is a 14/2 solid, unshielded riser (FPLR) fire alarm cable supplied on a 1000' (304.8 m) reel in white. It carries signaling and control circuits in indoor fire alarm installations, and suits installers who want solid bare copper with an easy-strip jacket. Countdown length markings and a built-in rip cord make it quicker to measure and prep on the job.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Polypropylene insulation sits under a PVC jacket.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings help you track how much cable you have used and how much remains.
• Rated for 300 volts and for temperatures from -20 °C to 75 °C.
• Sunlight resistant (UV) rated and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 43131001

Type: Solid unshielded fire alarm cable

Rating: Riser, FPLR

Length and packaging: 1000' (304.8 m) reel

Color: White

Gauge: 14 AWG (14/2)

Conductors: 2 (1 pair)

Conductor material: Bare copper

Construction: Solid

Insulation: PP (polypropylene)

Jacket: PVC

Shielding: No

Armored: No

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 32.00 lb

Installation notes

Use the rip cord to open the jacket cleanly before terminating, and check the countdown markings to cut runs to length and plan what is left on the reel. Because this cable is unshielded and rated for indoor use, keep it within the pathways and applications the local code allows for riser-rated fire alarm cable.
