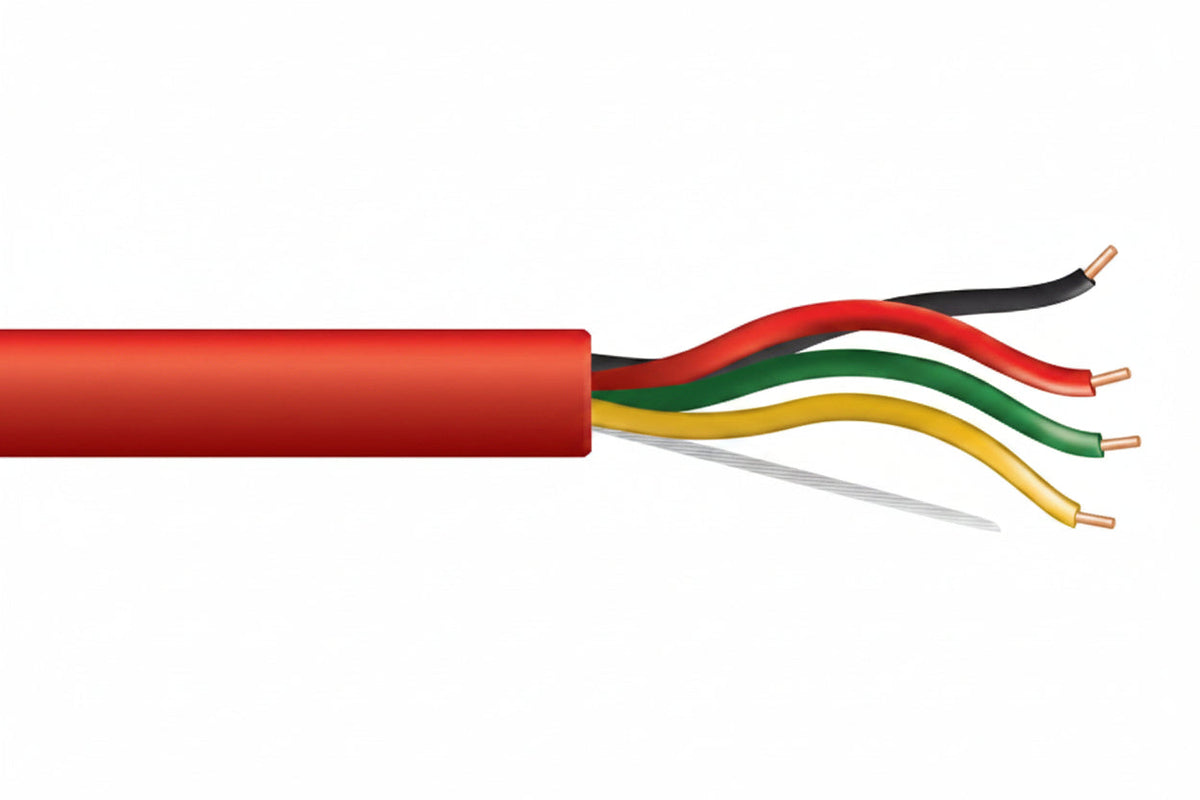

Genesis 43125004 16/4 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 500' (152.4 m) Reel, Red

The Genesis 43125004 is a 16 AWG, 4-conductor solid unshielded fire alarm cable, sold on a 500' (152.4 m) reel in red. It carries FPLR riser rating and is intended for indoor fire alarm and control wiring, which suits installers and businesses running riser cable between floors. Countdown length markings and a rip cord make it easier to measure and strip on the job.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Polypropylene insulation sits under a PVC jacket.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings make it easy to track how much cable you have used and how much remains.
• Rated for 300 volts and for temperatures from -20 °C to 75 °C.
• Sunlight resistant (UV) rated, and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 43125004

Product type: Unshielded fire alarm cable

Rating: Riser, FPLR

Length and packaging: 500' (152.4 m) reel

Color: Red

Gauge: 16 AWG

Number of conductors: 4

Conductor type: Solid

Conductor material: Bare copper

Insulation material: Polypropylene (PP)

Shielding: No

Armored: No

Indoor/Outdoor: Indoor

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 20.00 lb

Installation notes

Use the countdown markings to plan each run before cutting so you avoid waste, and score the jacket lightly or use the rip cord to avoid nicking the insulation. Follow local code and the alarm panel manufacturer's wiring requirements for routing and separation from other cabling.
