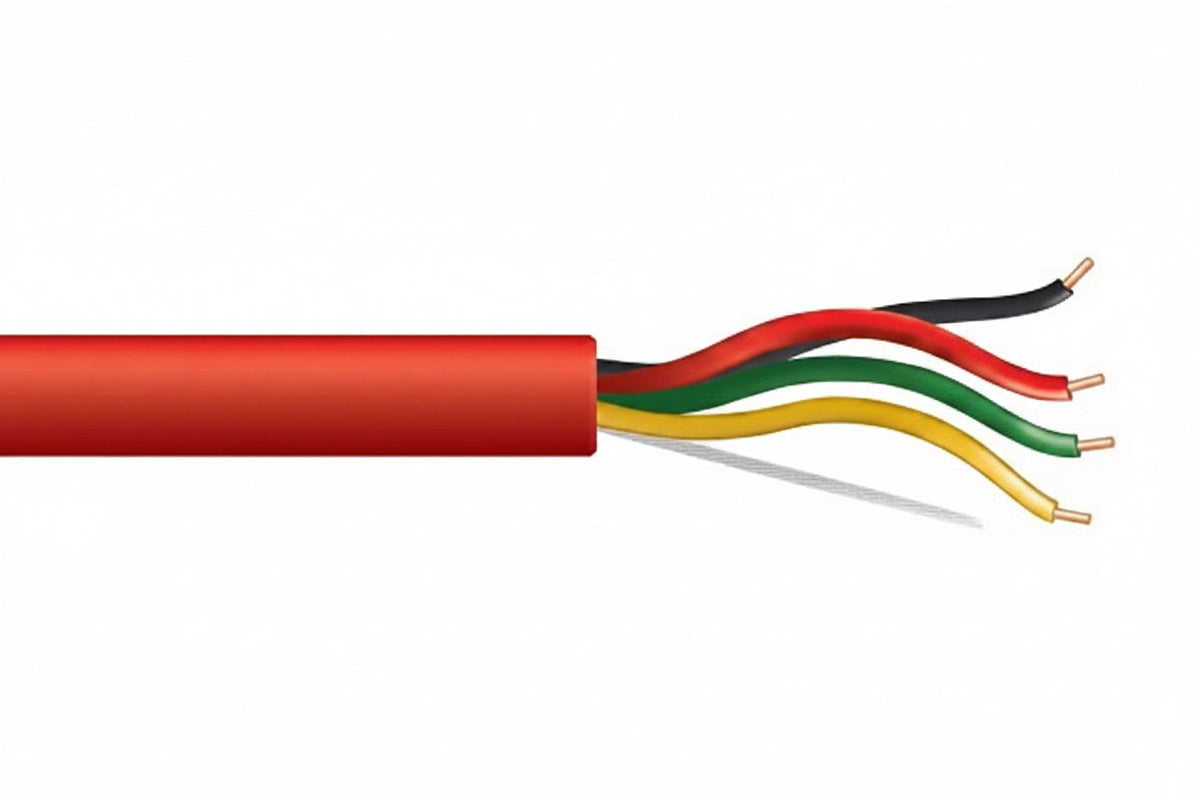

Genesis 43121004 16/4 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 1000' (304.8 m) Reel, Red

The Genesis 43121004 is a 16 AWG, 4-conductor solid unshielded fire alarm cable in red, supplied on a 1000' (304.8 m) reel. It is a riser-rated (FPLR) cable for indoor fire alarm wiring, and suits installers running control and signaling circuits. Bare copper conductors help keep voltage drop low, and the countdown length markings make it easy to track how much cable you have used and have left.

Key features

• Bare copper conductors give excellent conductivity and low voltage drop.
• Polypropylene insulation is paired with a PVC jacket.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings show usage and remaining cable at a glance.
• The cable is sunlight resistant (UV) rated and carries a 300 volt rating.
• It is rated for -20 °C to 75 °C and is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 43121004

Type: Solid Unshielded Fire Alarm Cable

Rating: Riser, FPLR

Size: 16/4 (16 AWG, 4 conductors)

Conductor material: Bare Copper

Solid or stranded: Solid

Insulation: Polypropylene (PP)

Jacket: PVC

Shielding: No

Armored: No

Color: Red

Length and packaging: 1000' (304.8 m) Reel

Voltage rating: 300 Volts

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 40.10 lb

Installation notes

Use the rip cord to open the jacket cleanly and avoid nicking the solid conductors when stripping. Because this cable is unshielded, keep it separated from high-voltage and noisy wiring where practical, and confirm the run suits the riser application before pulling.
