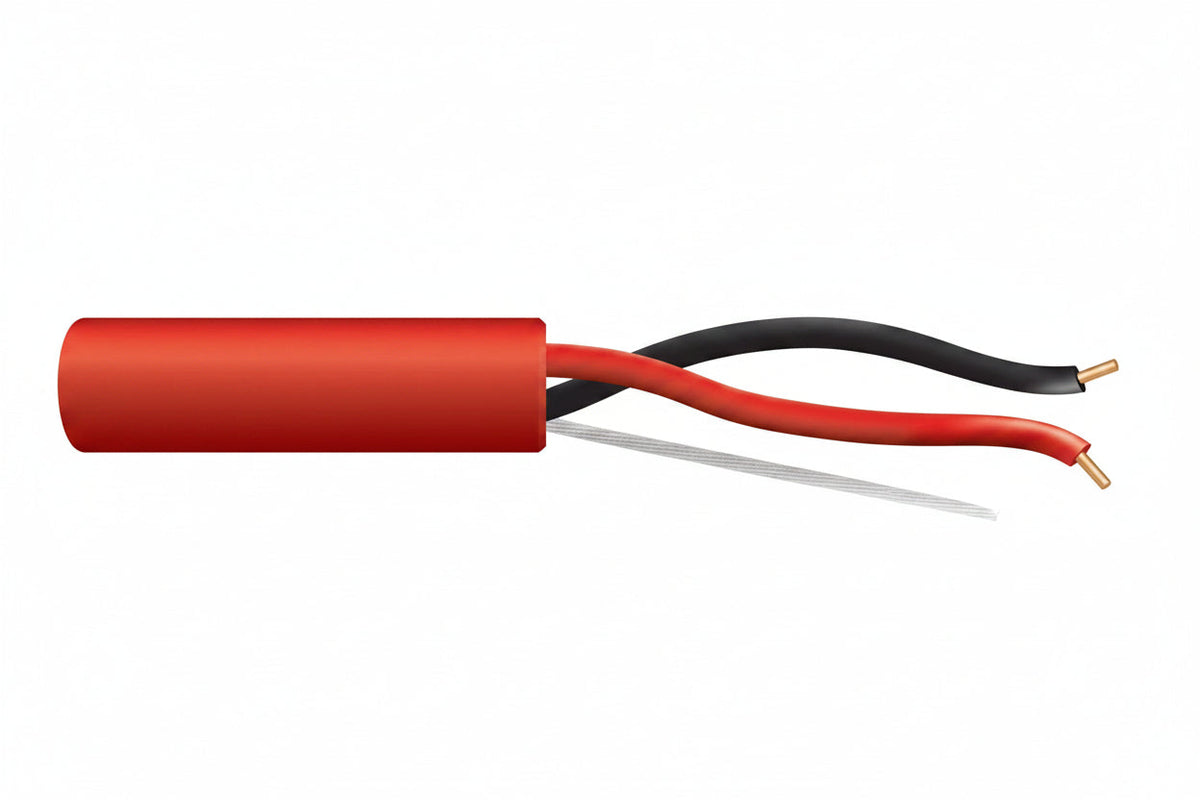

Genesis 43115504 16/2 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 500' (152.4 m) Pull Box, Red

The Genesis 43115504 is a 16/2 solid, unshielded fire alarm cable with a red PVC jacket, supplied in a 500' (152.4 m) pull box. It is a riser-rated (FPLR) cable for indoor fire alarm wiring, suited to installers who want a solid bare copper pair with countdown markings for tracking usage. The rip cord and sunlight-resistant rating are practical extras for pulling and finishing the run.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Polypropylene insulation sits under a PVC jacket.
• A rip cord makes jacket stripping and removal quicker.
• Countdown length markings show how much cable you have used and how much is left.
• Rated for 300V and for temperatures from -20 °C to 75 °C.
• Sunlight resistant (UV) rated, and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 43115504

Type: Solid unshielded fire alarm cable

Rating: Riser, FPLR

Length and packaging: 500' (152.4 m) pull box

Color: Red

Gauge: 16 AWG (16/2)

Conductors: 2 (1 pair)

Conductor material: Bare copper, solid

Insulation: Polypropylene (PP)

Jacket: PVC

Shielding: No

Armored: No

Voltage rating: 300V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 11.20 lb

Installation notes

Pull the cable from the box without kinking it, and use the countdown markings to cut runs to length and keep track of what remains. Because this cable is unshielded, keep it separated from higher-voltage power wiring, and follow local code and the panel manufacturer's requirements for fire alarm circuit routing.
