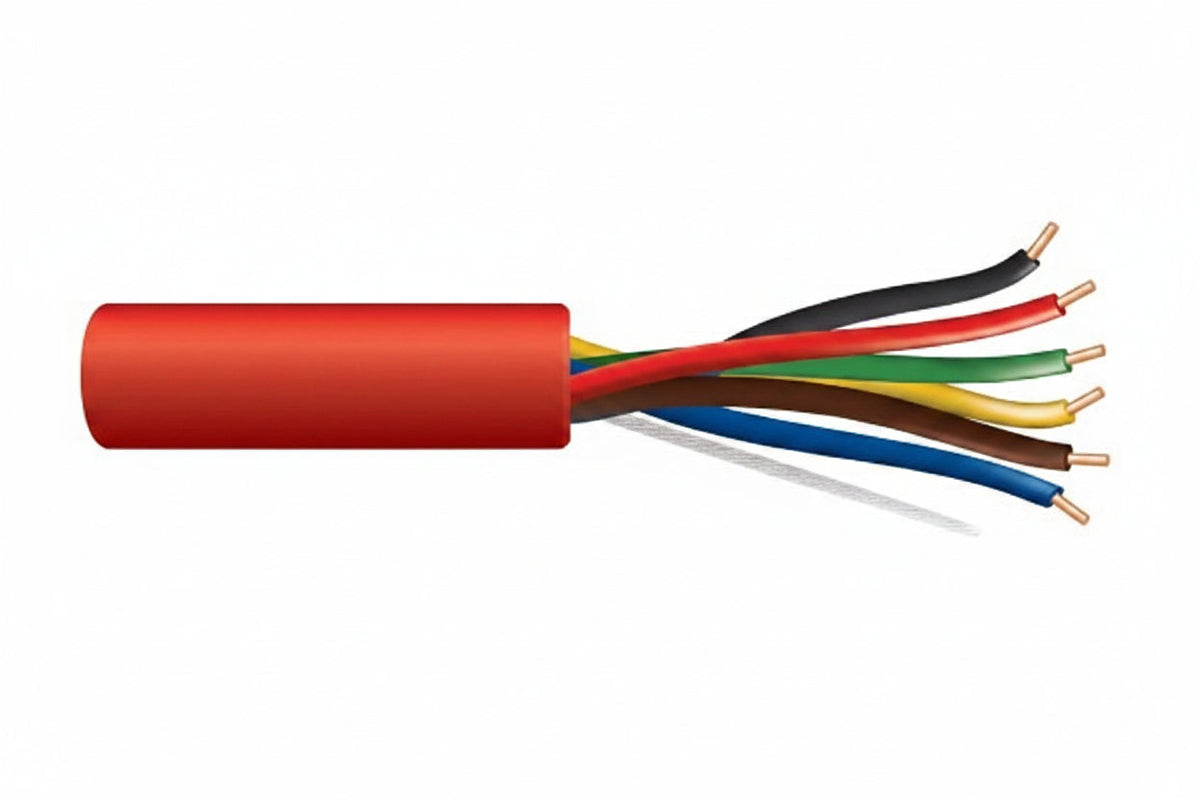

Genesis 43085504 18/6 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 500' (152.4 m) Pull Box, Red

The Genesis 43085504 is a 500-foot pull box of red 18 AWG, 6-conductor solid unshielded fire alarm cable with a riser (FPLR) rating. It carries the wiring for fire alarm systems and suits installers running indoor fire alarm circuits. Bare copper conductors, a rip cord for jacket removal and countdown length markings make it easier to pull and track on the job.

Key features

• Six solid bare copper conductors give good conductivity and low voltage drop.
• Polypropylene insulation sits under a PVC jacket.
• A built-in rip cord lets you strip the jacket quickly and cleanly.
• Countdown length markings show how much cable you have used and how much remains.
• The cable is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• It is sunlight resistant (UV) rated, and it is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 43085504

Product type: Fire Alarm Cables

Rating: Riser, FPLR

Length and packaging: 500' (152.4 m) pull box

Color: Red

Gauge: 18 AWG

Number of conductors: 6

Solid or stranded: Solid

Conductor material: Bare copper

Insulation material: Polypropylene (PP)

Jacket: PVC

Shielding: No

Armored: No

Indoor/Outdoor: Indoor

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 12.80 lb

Installation notes

Pull the cable from the box so it feeds off cleanly, and avoid kinking or sharp bends. Use the countdown markings to plan each run, and use the rip cord to open the jacket without nicking the conductors.
