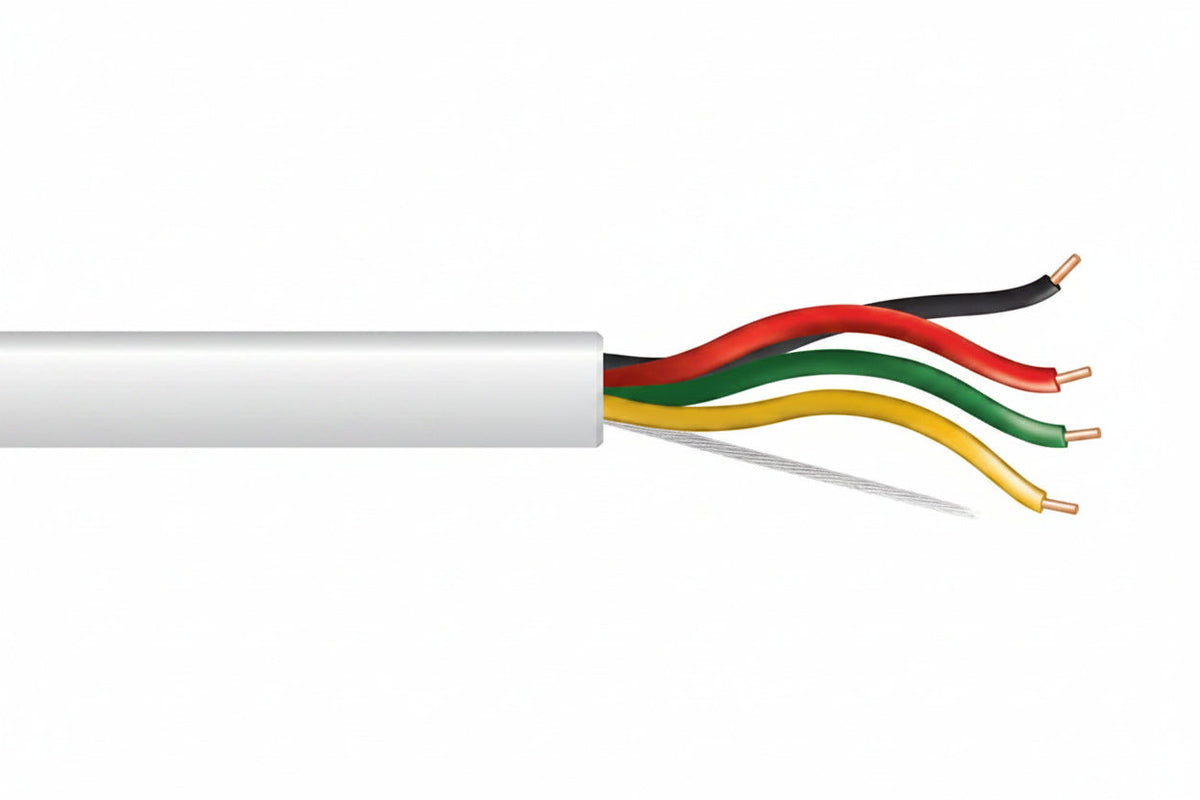

Genesis 43075501 18/4 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 500' (152.4 m) Pull Box, White

The Genesis 43075501 is a 500' (152.4 m) pull box of 18/4 solid unshielded fire alarm cable with a riser (FPLR) rating and a white jacket. It carries power and signal wiring for fire alarm systems and suits installers and contractors who need indoor riser cable. It uses bare copper conductors and has a rip cord and countdown length markings to speed up the work.

Key features

• Four solid bare copper conductors give good conductivity and low voltage drop.
• Polypropylene insulation sits under a PVC jacket.
• A rip cord makes it quicker to strip and remove the jacket.
• Countdown length markings show how much cable you have used and how much is left.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• It is sunlight resistant (UV) rated and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 43075501

Product type: Fire Alarm Cable

Rating: Riser, FPLR

Length and packaging: 500' (152.4 m) pull box

Color: White

Gauge/conductors: 18/4 (18 AWG, 4 conductors)

Conductor type: Solid

Conductor material: Bare copper

Insulation: Polypropylene (PP)

Jacket: PVC

Shielding: No (unshielded)

Armored: No

Indoor/Outdoor: Indoor

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 13.10 lb

Installation notes

Pull the cable from the box without kinking it, and keep to the bend radius the manufacturer specifies. Use the countdown markings to plan runs and cut lengths before you terminate, and check the local fire code and the panel manufacturer's wiring requirements before you install.
