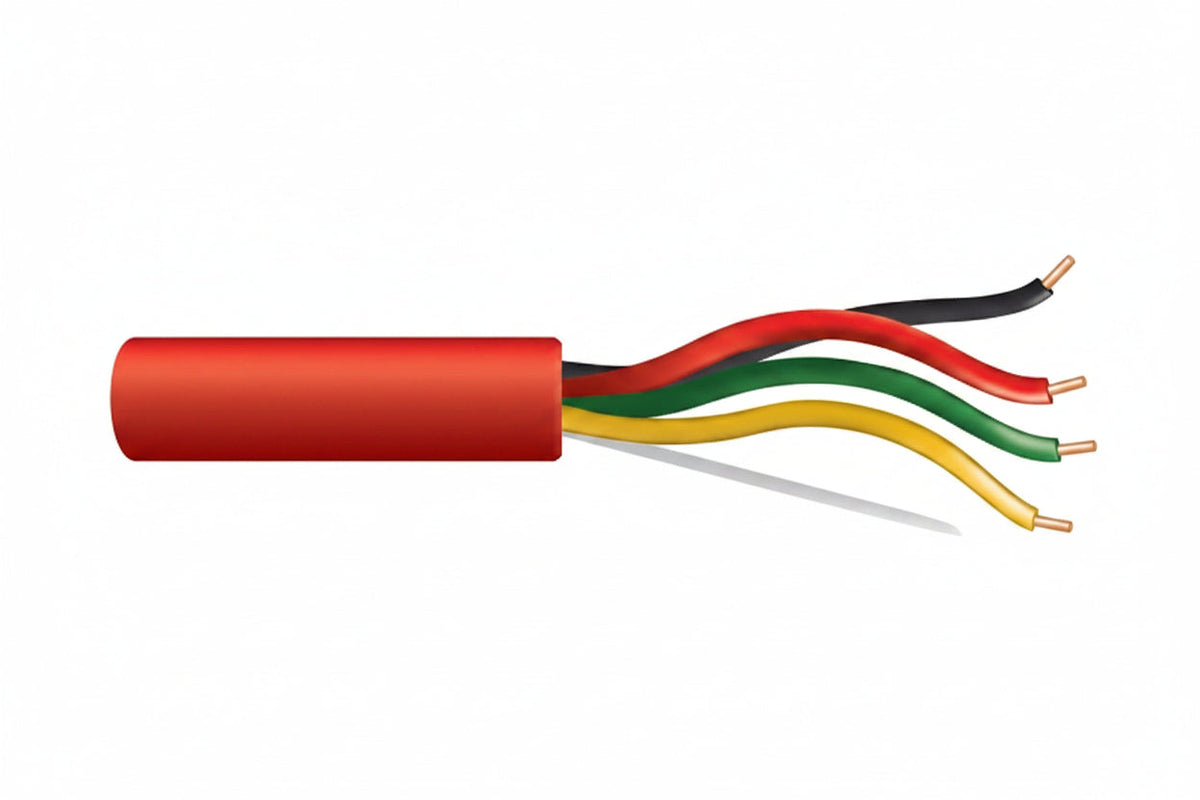

Genesis 43071004 18/4 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 1000' (304.8 m) Reel, Red

The Genesis 43071004 is an 18 AWG, 4-conductor solid, unshielded fire alarm cable in red, supplied on a 1000' (304.8 m) reel. It is riser-rated (FPLR) and suited to installers running fire alarm circuits indoors. Bare copper conductors, a rip cord for jacket removal and countdown length markings make it easy to work with and to track on long runs.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Polypropylene insulation sits under a PVC jacket.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings show how much cable you have used and how much remains.
• Rated for 300 volts and for temperatures from -20 °C to 75 °C.
• Sunlight resistant (UV) rated, and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 43071004

Product type: Fire alarm cable

Rating: Riser, FPLR

Length and packaging: 1000' (304.8 m) reel

Color: Red

Conductors: 4

Wire gauge: 18 AWG

Solid or stranded: Solid

Conductor material: Bare copper

Insulation material: Polypropylene (PP)

Shielding: No

Armored: No

Indoor/outdoor: Indoor

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 25.70 lb

Installation notes

Use the rip cord to open the jacket cleanly, and check the countdown markings to plan each pull so you cut only what you need. Because this is an unshielded indoor cable, route it away from high-voltage wiring and follow the local code for fire alarm pathways.
