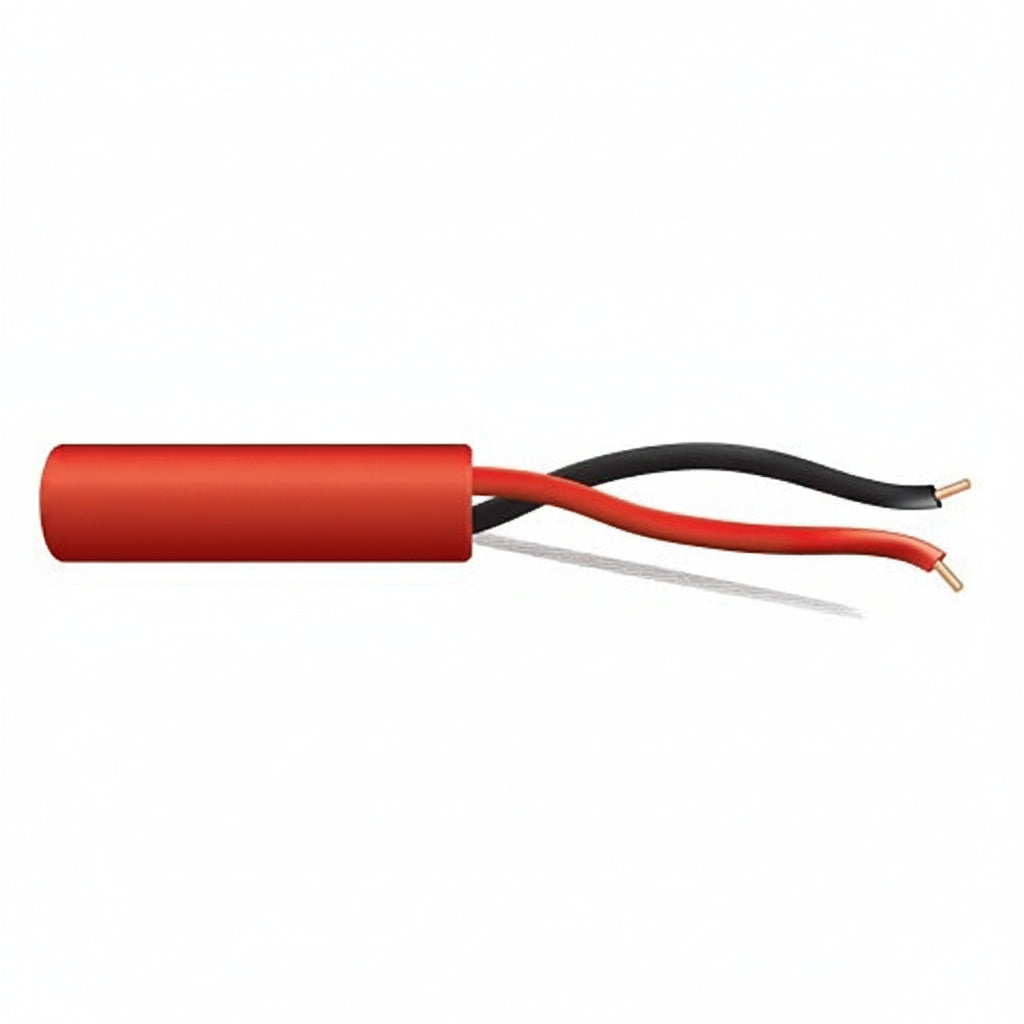

Genesis 43065504 18/2 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 500' (152.4 m) Pull Box, Red

The Genesis 43065504 is a 500' (152.4 m) pull box of red 18/2 solid, unshielded riser-rated (FPLR) fire alarm cable. It suits installers running control and signaling circuits indoors who want solid bare copper conductors and a cable that is easy to strip and track. Countdown length markings and a built-in rip cord make it practical on longer pulls.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Polypropylene insulation sits under a PVC jacket.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings make it easy to see how much cable you have used and how much remains.
• Rated for 300V and for temperatures from -20 °C to 75 °C.
• Sunlight resistant (UV) rated and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 43065504

Product type: Fire Alarm Cable

Rating: Riser, FPLR

Length and packaging: 500' (152.4 m) pull box

Color: Red

Gauge: 18 AWG (18/2)

Number of conductors: 2

Number of pairs: 1

Conductor material: Bare copper

Solid or stranded: Solid

Insulation material: PP

Jacket: PVC

Shielding: No

Armored: No

Indoor/Outdoor: Indoor

Voltage rating: 300V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 7.20 lb

Installation notes

Pull the cable from the box without kinking it, and use the countdown markings to cut runs to length and keep track of what is left. Use the rip cord to open the jacket cleanly, and keep the cable within the temperature and indoor-use limits listed above.
