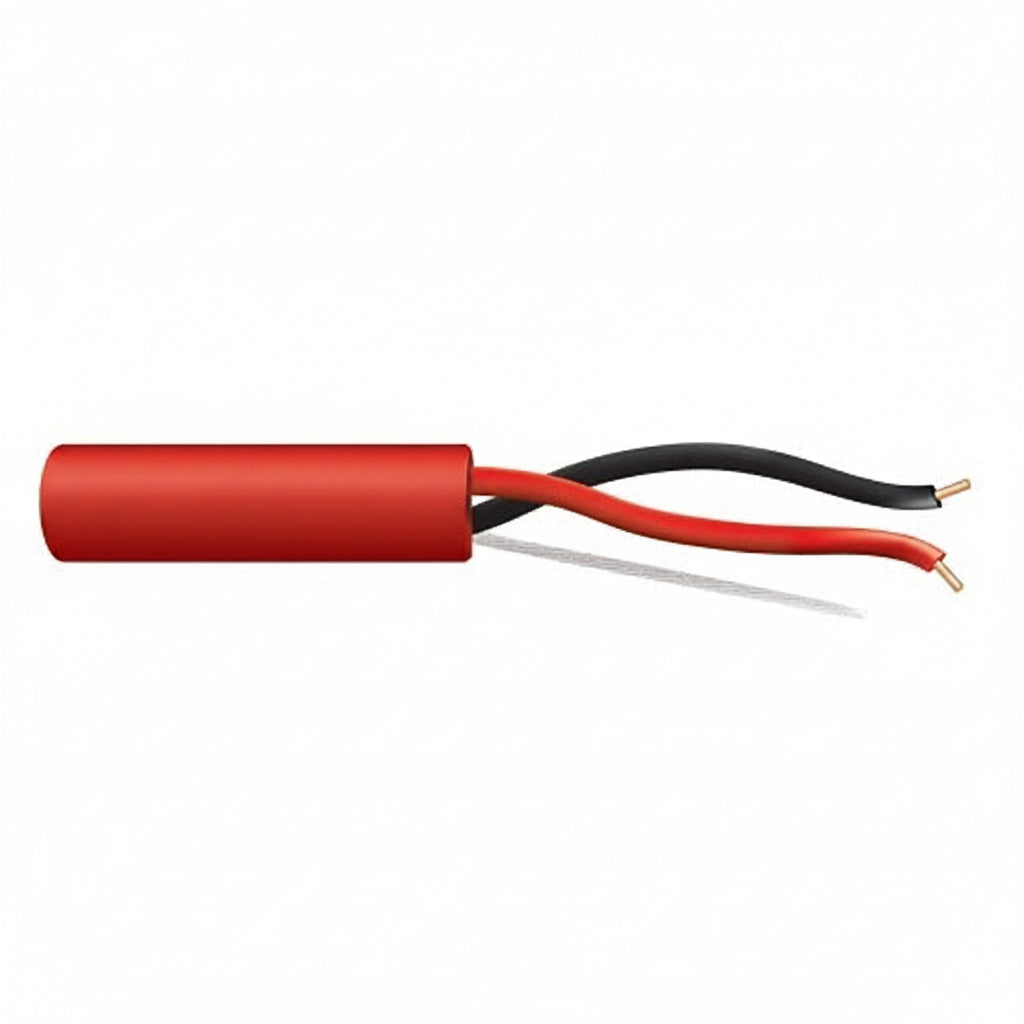

Genesis 43061104 18/2 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 1000' (304.8 m) Pull Box, Red

Genesis 43061104 is an 18/2 solid unshielded fire alarm cable in red, supplied on a 1000' (304.8 m) pull box. It is a riser-rated (FPLR) cable for wiring fire alarm circuits in indoor installations, suited to installers who need a solid-copper 18 AWG, 2-conductor run. Countdown length markings and a rip cord make it easier to measure out and strip during pulls.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Polypropylene insulation sits under a PVC jacket.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings show how much cable you have used and how much remains.
• Rated for 300 volts and for temperatures from -20 °C to 75 °C.
• Sunlight resistant (UV) rated, and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 43061104

Product type: Fire Alarm Cable

Rating: Riser, FPLR

Length and packaging: 1000' (304.8 m) pull box

Color: Red

Size: 18/2, 18 AWG

Conductors: 2 (1 pair)

Conductor material: Bare copper

Solid or stranded: Solid

Insulation material: Polypropylene (PP)

Jacket: PVC

Shielding: No

Armored: No

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 14.40 lb

Installation notes

Pull from the box so the cable feeds off cleanly, and use the countdown markings to cut runs to length without waste. Follow local fire alarm code for routing, support and separation from other circuits, and test each run for continuity before connecting devices.
