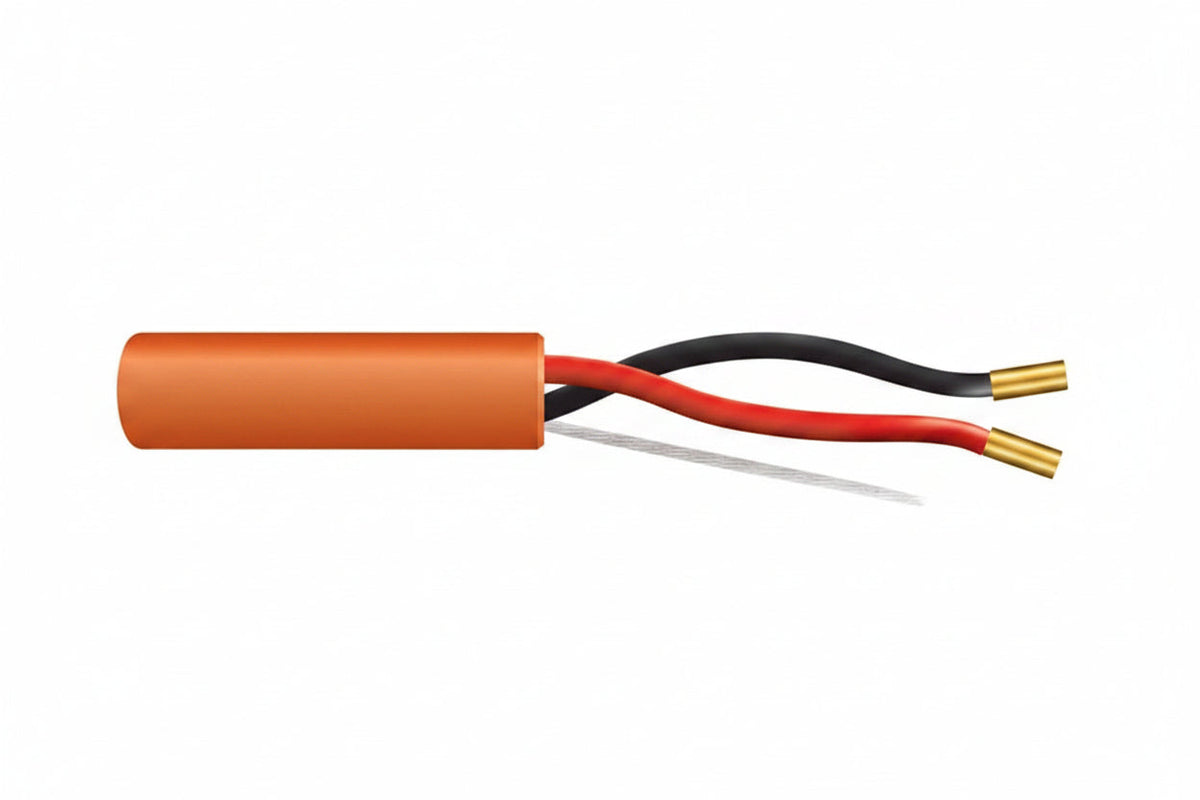

Genesis 43061103 18/2 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 1000' (304.8 m) Pull Box, Orange

The Genesis 43061103 is an 18 AWG, 2-conductor solid, unshielded fire alarm cable rated FPLR (riser), supplied in a 1000' (304.8 m) pull box in orange. It suits installers running fire alarm circuits indoors who want bare copper conductors for low voltage drop. The countdown length markings and rip cord make it easier to track usage and strip the jacket on the job.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Polypropylene insulation sits under a PVC jacket.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings make it easy to see how much cable you have used and how much remains.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• It is sunlight resistant (UV) rated and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 43061103

Product type: Fire Alarm Cable

Rating: Riser, FPLR

Length/packaging: 1000' (304.8 m) pull box

Color: Orange

American wire gauge: 18 AWG

Number of conductors: 2

Number of pairs: 1

Solid or stranded: Solid

Conductor material: Bare copper

Insulation material: PP

Jacket: PVC

Shielding: No

Armored: No

Indoor/outdoor: Indoor

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Installation notes

Pull from the box without kinking or over-tensioning the cable, and use the rip cord to open the jacket cleanly at terminations. Because the cable is unshielded and solid, keep bends gentle and follow local code and the panel manufacturer's instructions for routing and circuit layout.
