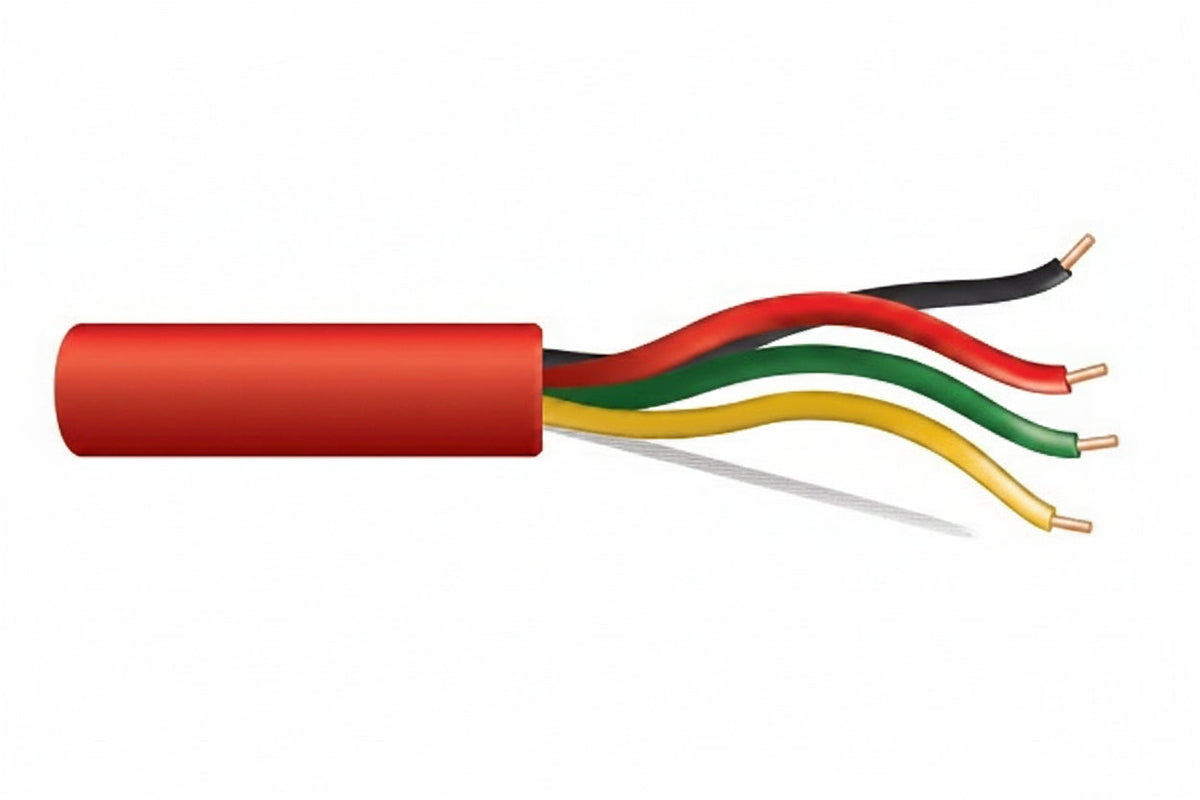

Genesis 43015504 22/4 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 500' (152.4 m) Pull Box, Red

The Genesis 43015504 is a 22 AWG, 4-conductor solid unshielded fire alarm cable with a riser (FPLR) rating, supplied in a 500' (152.4 m) pull box in red. It is used for fire alarm system wiring indoors and suits installers and contractors running panel, device and notification circuits. Bare copper conductors, a rip cord for stripping and countdown length markings make it easier to work with on the job.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Polypropylene insulation sits under a PVC jacket.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings show how much cable you have used and how much remains.
• The cable is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• It is sunlight resistant (UV) rated and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 43015504

Product type: Fire Alarm Cable

Size/conductors: 22/4

American Wire Gauge: 22 AWG

Number of conductors: 4

Solid or stranded: Solid

Conductor material: Bare copper

Insulation material: Polypropylene (PP)

Jacket: PVC

Rating: Riser, FPLR

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Shielding: No

Armored: No

Color: Red

Indoor/Outdoor: Indoor

Length/packaging: 500' (152.4 m) pull box

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 6.30 lb

Installation notes

Pull the cable straight from the box to avoid kinks and twists, and use the countdown markings to plan each run before cutting. Because this cable is unshielded, keep it separated from higher-voltage power wiring and follow local code and the fire alarm panel manufacturer's instructions for routing and termination.
